Wakefield Thermal PINLED Pin-Fin Heat Sinks for COB/SMD LEDs
Wakefield Thermal PINLED Pin-Fin Heat Sinks for COB/SMD LEDs are designed using a 99.7% high-purity aluminum cold-forging process, making them ideal for both active and passive cooling. The simple cylindrical blade design provides excellent convection heat dissipation. Wakefield Thermal PINLED Pin-Fin Heat Sinks for COB/SMD LEDs are compatible with a wide range of light modules, including Edison, Xicato, Bridgelux, Osram, Lumileds, Cree, Tridonic, LG, Lustrous, Prolight, Samsung, SHARP, Luminus, and Philips.
Features
- Mechanical compatibility with direct mounting of LED modules to LED cooler and thermal performance matching lumen packages
- Several diameters and standard heights
- Forged from highly conductive aluminum
- Black anodized
- Blank surface with no holes to mount any device listed in the chart below

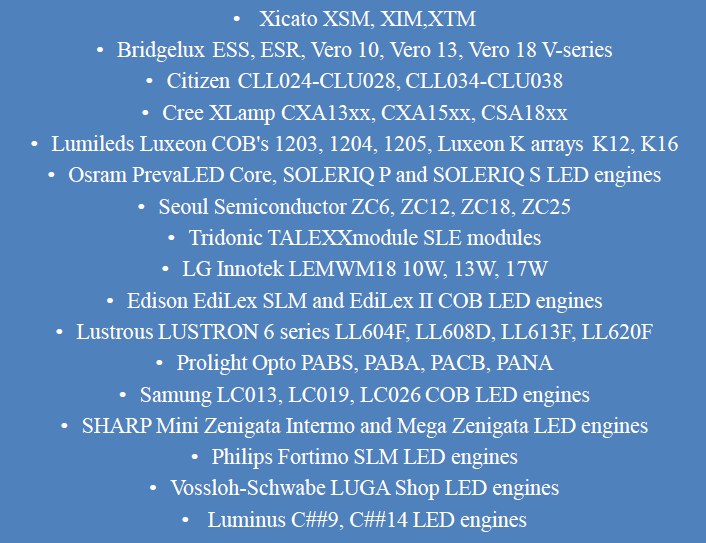

Compatibility
Overview
Thermal Data
