Analog Devices Inc. MAX42410EVKIT# Evaluation Kit

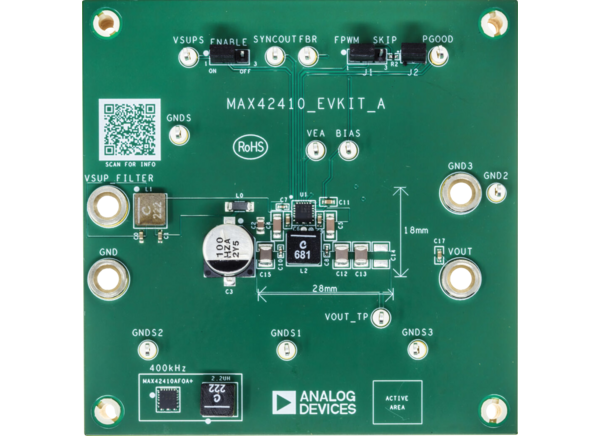

Analog Devices Inc. MAX42410EVKIT# Evaluation Kit provides a proven design to evaluate the MAX42410 synchronous buck converter with 10μA quiescent current. The EV kit has a MAX42410AFOB+ (1.5MHz) installed with various test points and jumpers for evaluation. The EV kit's output voltage is variable, set to 3.3V, and easilyconfigured to 0.8V to 6V (1.5MHz) or up to 10V (400kHz) with minimum component changes. The EV kit is designed to deliver up to 10A with an input voltage range from 4.5V to 36V. Output voltage quality can be monitored by observing the PGOOD signal.
