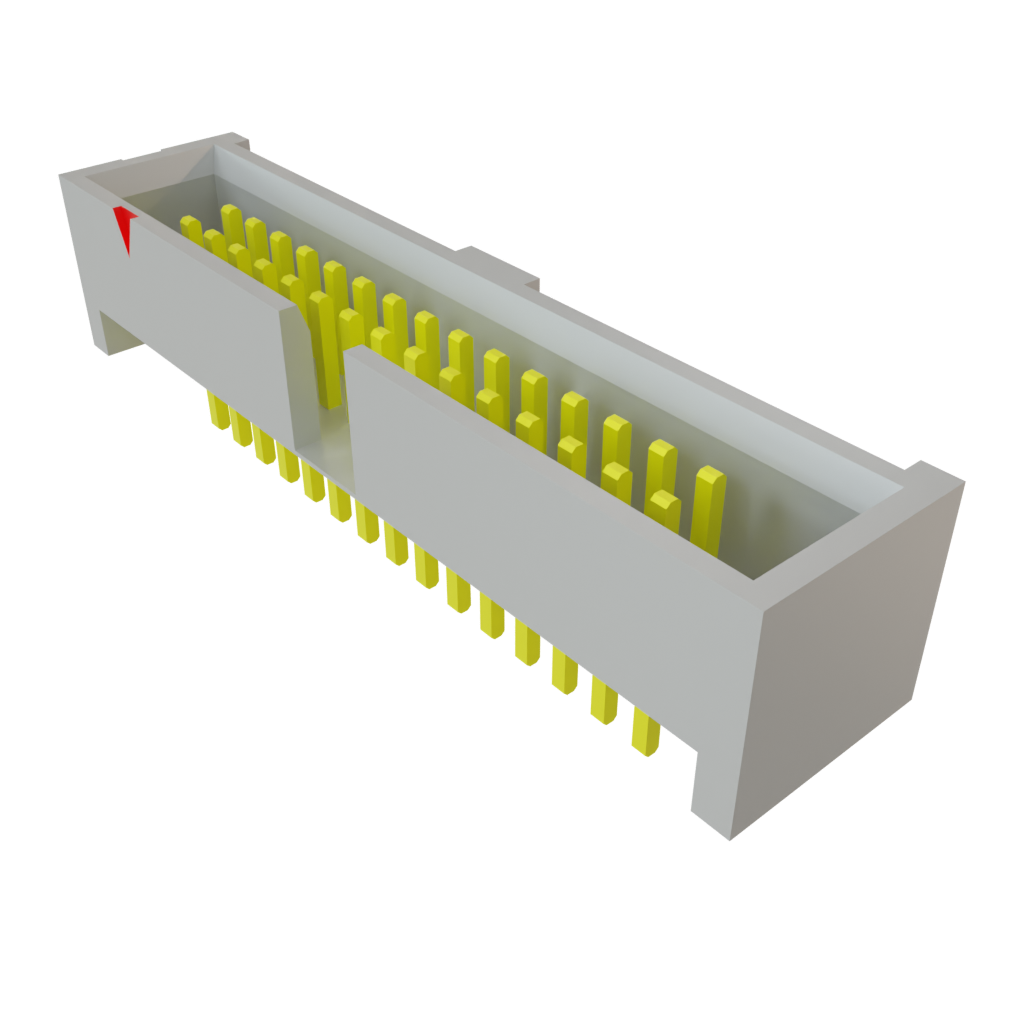

SHF-115-01-L-D-TH

Name: Samtec SHF-115-01-L-D-TH
Brand: Samtec
SKU: 200-SHF11501LDTH
Price: 3.24 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SHF11501LDTH

Mfr. No:

SHF-115-01-L-D-TH

Mfr.:

Samtec

Description:

Headers & Wire Housings Shrouded Terminal Strip

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SHF-115-01-L-D-TH

In Stock: 26

Stock:: 26

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 88

Expected 2/23/2026
Factory Lead Time:: 11

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,24 €	3,24 €
	2,90 €	127,60 €
	2,33 €	256,30 €
	2,15 €	1.087,90 €

Alternative Packaging

Mfr. Part No.:

SHF-115-01-L-D-TH-TR

Packaging:

Reel, Cut Tape

Availability:

In Stock

Price:

3,32 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	30 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Row Spacing:	1.27 mm (0.05 in)
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Mating Post Length:	3.05 mm (0.12 in)
Termination Post Length:	1.91 mm (0.075 in)
Series:	SHF
Application:	Board-to-Cable
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Samtec
Contact Material:	Phosphor Bronze
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	22
Subcategory:	Headers & Wire Housings
Unit Weight:	460,480 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Models

SHF-115-01-L-D-TH Symbol & Footprint by SnapMagic

Specification Sheets

Technical Resources

Dimensional Drawing, Footprint, and Part Number Configuration

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

ECF/EHF/ESHF/SHF Shrouded & Ejector IDC Headers
