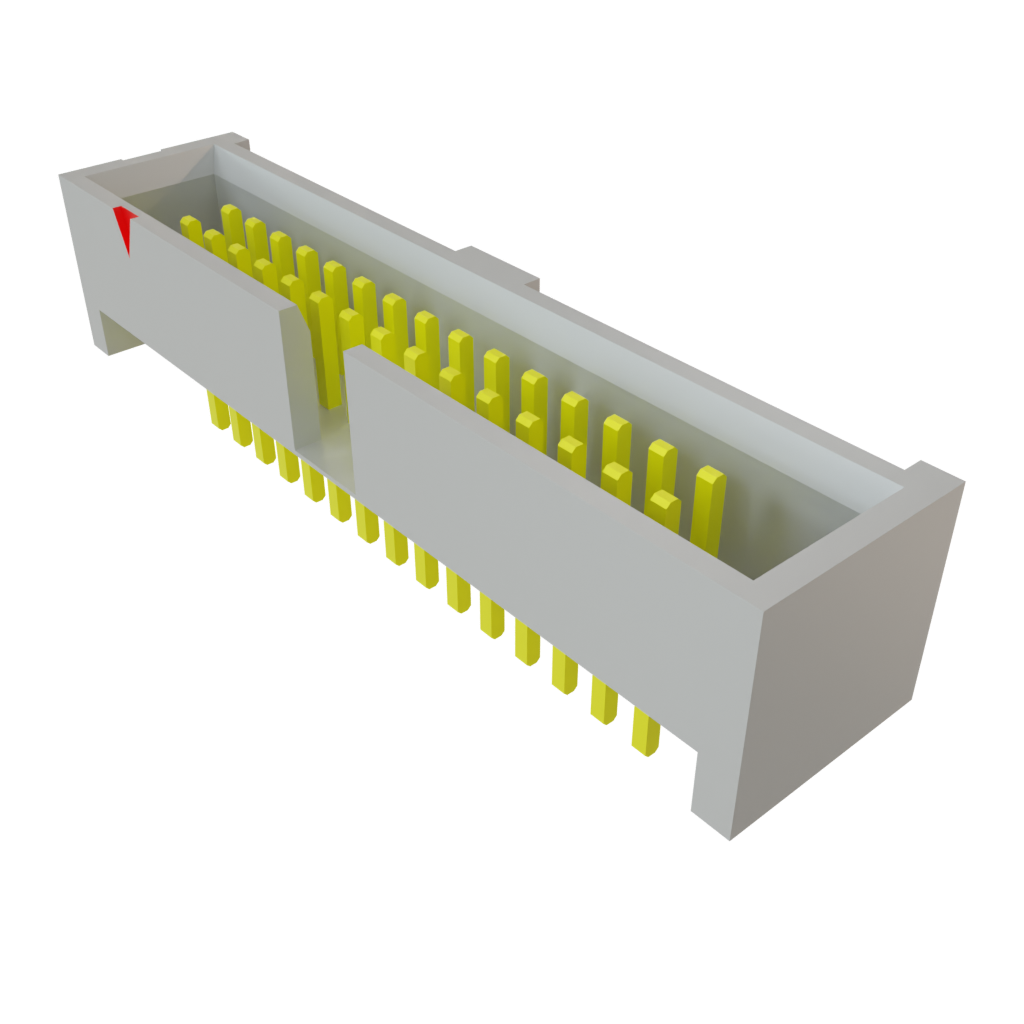

SHF-115-01-L-D-TH-TR

Name: Samtec SHF-115-01-L-D-TH-TR
Brand: Samtec
SKU: 200-SHF11501LDTHTR
Price: 3.32 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SHF11501LDTHTR

Mfr. No:

SHF-115-01-L-D-TH-TR

Mfr.:

Samtec

Description:

Headers & Wire Housings Shrouded Terminal Strip

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SHF-115-01-L-D-TH-TR

In Stock: 543

Stock:: 543 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,32 €	3,32 €
	2,97 €	74,25 €
	2,65 €	132,50 €
	2,38 €	238,00 €
Full Reel (Order in multiples of 475)
	2,38 €	1.130,50 €
	2,20 €	2.090,00 €

Alternative Packaging

Mfr. Part No.:

SHF-115-01-L-D-TH

Packaging:

Tube

Availability:

In Stock

Price:

3,24 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	30 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Row Spacing:	1.27 mm (0.05 in)
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	SHF
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	475
Subcategory:	Headers & Wire Housings

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Specification Sheets

Technical Resources

Dimensional Drawing, Footprint, and Part Number Configuration

USHTS:: 8536694040
ECCN:: EAR99

ECF/EHF/ESHF/SHF Shrouded & Ejector IDC Headers

Samtec ECF/EHF/ESHF/SHF Shrouded and Ejector IDC Headers offer a .050" (1.27mm) pitch with through-hole, right-angle, and surface mount tail styles available in common pin counts from 4 to 25. The IDC headers are designed for use with the FFSD flat ribbon and FFTP twisted pair cable assemblies. The SHF shrouded PCB mounting terminal strips and the EHF double-row shrouded headers feature a polarization notch, the EHF components are also fitted with ejectors. The Samtec ECF/EHF/ESHF/SHF Shrouded and Ejector IDC Headers operate in a temperature range from -55°C to +125°C, are RoHS compliant and lead-free solderable.
