HDTM-3-04-1-S-VT-0-1

Name: Samtec HDTM-3-04-1-S-VT-0-1
Brand: Samtec
SKU: 200-HDTM3041SVT01
Price: 6.43 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-HDTM3041SVT01

Mfr. No:

HDTM-3-04-1-S-VT-0-1

Mfr.:

Samtec

Description:

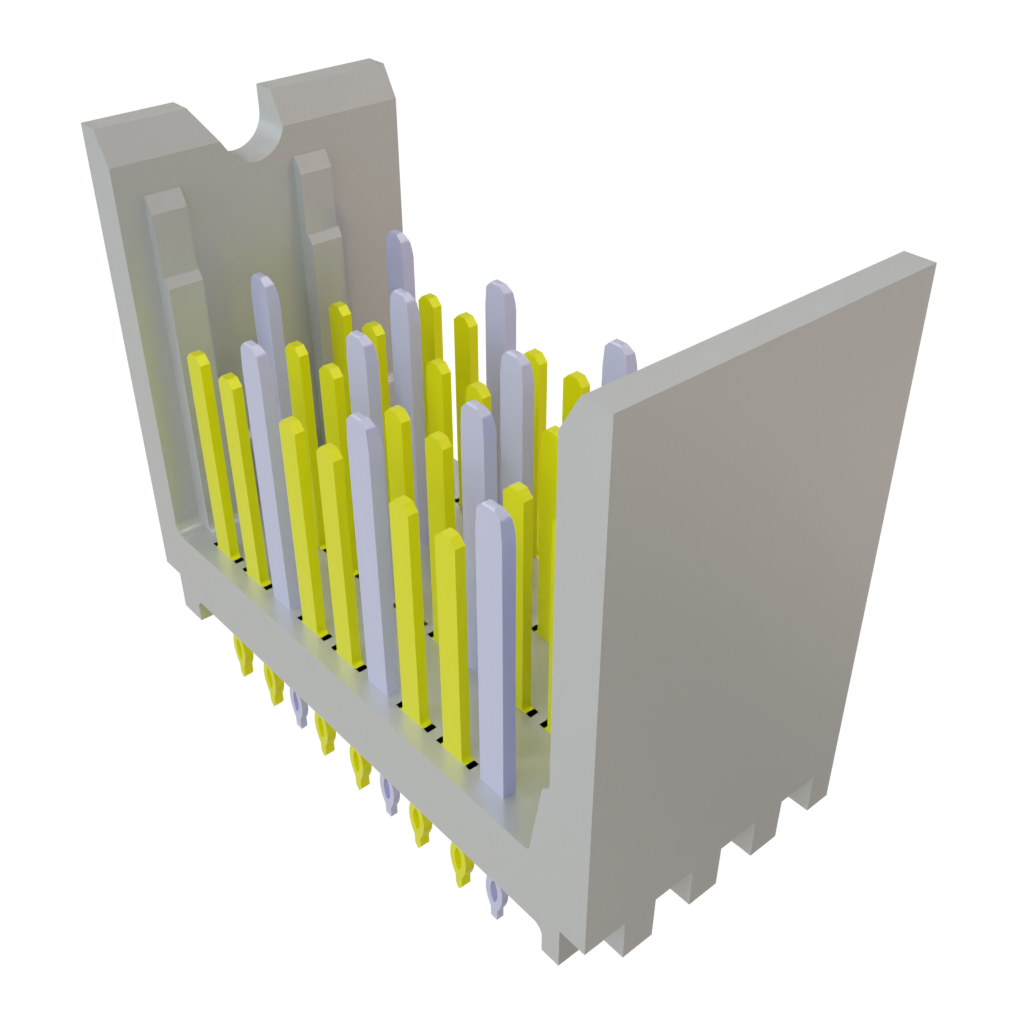

High Speed/Modular Connectors XCede(R) HD 1.80 mm High-Density Backplane Vertical Header

Datasheet:

HDTM-3-04-1-S-VT-0-1 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec HDTM-3-04-1-S-VT-0-1

In Stock: 48

Stock:: 48 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	6,43 €	6,43 €
	5,58 €	139,50 €
	4,72 €	283,20 €
	3,43 €	411,60 €
	3,16 €	1.706,40 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	High Speed/Modular Connectors
RoHS:
Product:	Headers
Number of Positions:	24 Position
Number of Rows:	4 Row
Pitch:	1.8 mm
Termination Style:	Press Fit
Contact Plating:	Gold
Series:	HDTM
Packaging:	Tray
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Vertical
Product Type:	High Speed / Modular Connectors
Factory Pack Quantity:	60
Subcategory:	Backplane Connectors
Tradename:	XCede

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

XCede® HD High-Density Backplane Systems

Samtec XCede® HD High-Density Backplane Systems combine a small form factor with incredible design flexibility for system and board space savings. These backplane systems allow for creating a fully custom backplane solution with guidance and keying, power modules, and sidewalls for increased durability. Samtec XCede HD backplane systems help prevent system downtime by implementing a staggered differential pin design where the ground pins mate first for hot-plugging. These backplane systems feature a 1.8mm column pitch, up to 3mm contact wipe on signal pins, and multiple signal/ground pin staging options.

XCede® HD HDTM 1.8mm Vertical Backplane Headers

Samtec XCede® HD HDTM 1.8mm Vertical Backplane Headers feature a 1.8mm column pitch, keying, guidance, and up to 3mm contact wipe on signal pins. These headers consist of three levels of sequencing that enable hot-plugging and are available in 3-, 4-, and 6-pair designs with 4, 6, or 8 columns. Samtech HDTM headers are designed using liquid crystal polymer (LCP) housing material and phosphor bronze contact material. These RoHS-compliant headers operate at -40°C to +105°C temperature range. The XCede HD HDTM vertical backplane headers mate with the XCede HD HDTF right-angle backplane receptacles.
