Samtec AcceleRate® Slim Body Direct Attach Cable Assembly

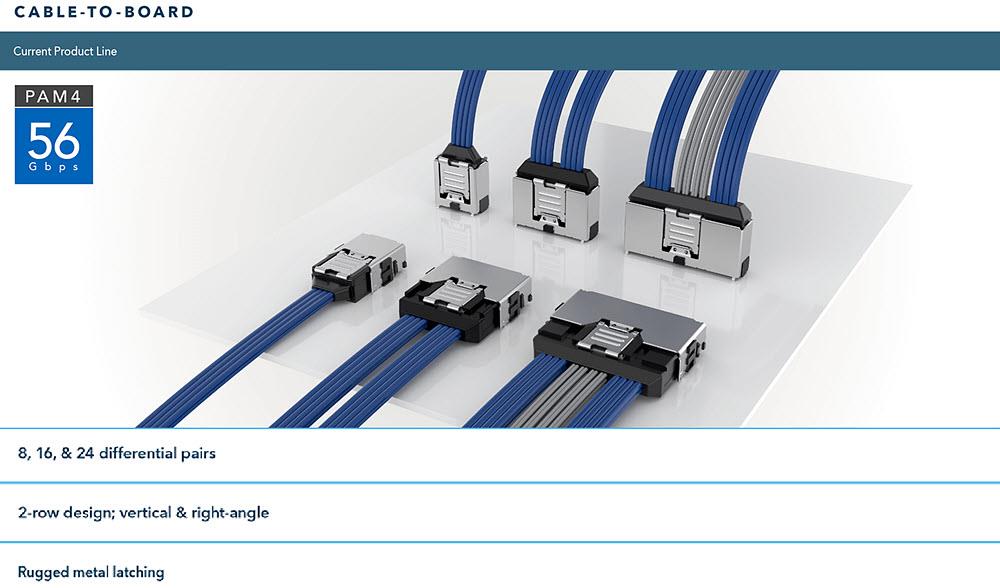

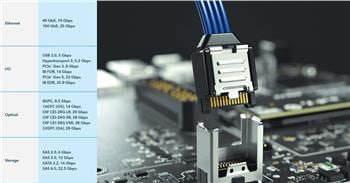

Samtec AcceleRate^® Slim Body Direct Attach Cable Assemblies include the ARF6 vertical slim socket, ARF6-RA right-angle slim socket, and ARC6 slim cable body that all mate together for a secure connection. The ARC6 cable body offers a 0.635mm pitch and supports 64Gbps PAM4 applications. The ARF6 is a vertical surface-mounting connector that is shielded and fitted with a rugged metal latch. The ARF6-RA is a right-angle connector that has rugged metal latching and shielding. Samtec AcceleRate Slim Body Direct Attach Cable Assemblies have 8, 16, and 24 differential pairs with 13, 25, and 37 single-ended positions per row available in a high-density 2-row design.

Features

ARC6
- 0.635mm pitch
- High-density 2-row design

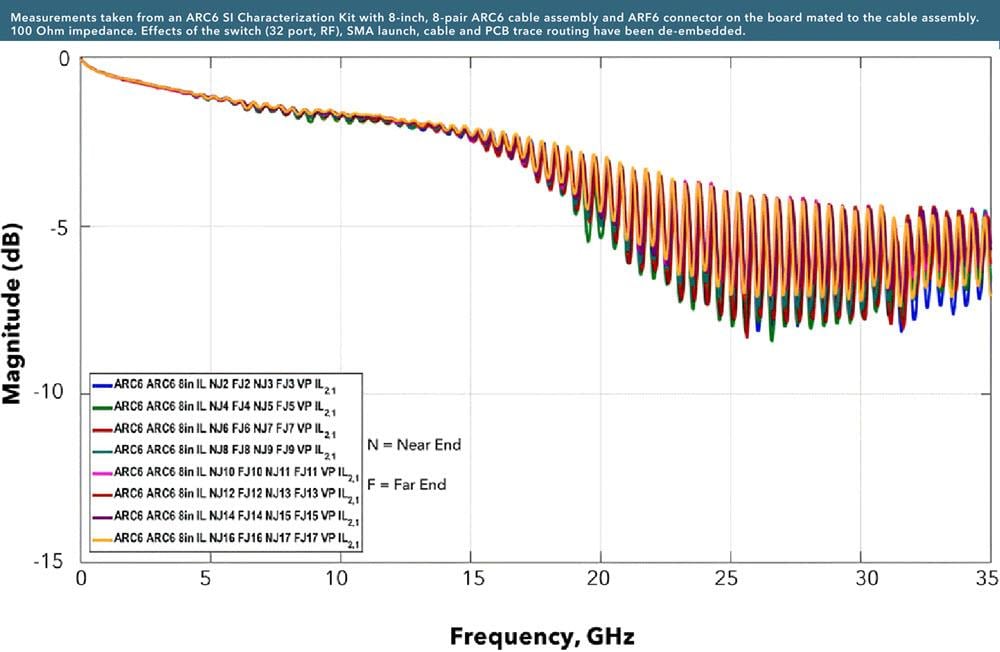

- Supports 64Gbps PAM4 (32Gbps NRZ) applications
- PCIe 6.0/CXL^® 3.2 capable
- 8, 16, and 24 differential pairs; 13, 25, and 37 single-ended positions per row

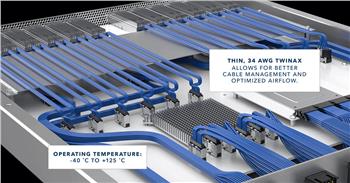

- 34AWG, 100Ω Eye Speed^®, and 92Ω ThinaxTM ultra low skew twinax cable available
- 34AWG, 50Ω ThinSE™ micro coax cable with a .024” (0.61mm) outer diameter; 5Gbps NRZ
- Mixed differential pair and single-ended signaling available
- Rugged metal latching system
- “Reversed Polarity” pinout option for reduced Far-End Crosstalk

ARF6/ARF6-RA
- 0.635mm pitch
- Right angle for increased flexibility (ARF6-RA only)
- High-density 2-row design
- Supports 64Gbps PAM4 (32Gbps NRZ) applications
- PCIe^® 6.0/CXL^® 3.2 capable
- 8, 16, and 24 differential pair options available
- Rugged metal latching and shielding
- Standard weld tabs
