HDTF-3-06-S-RA-LC-100

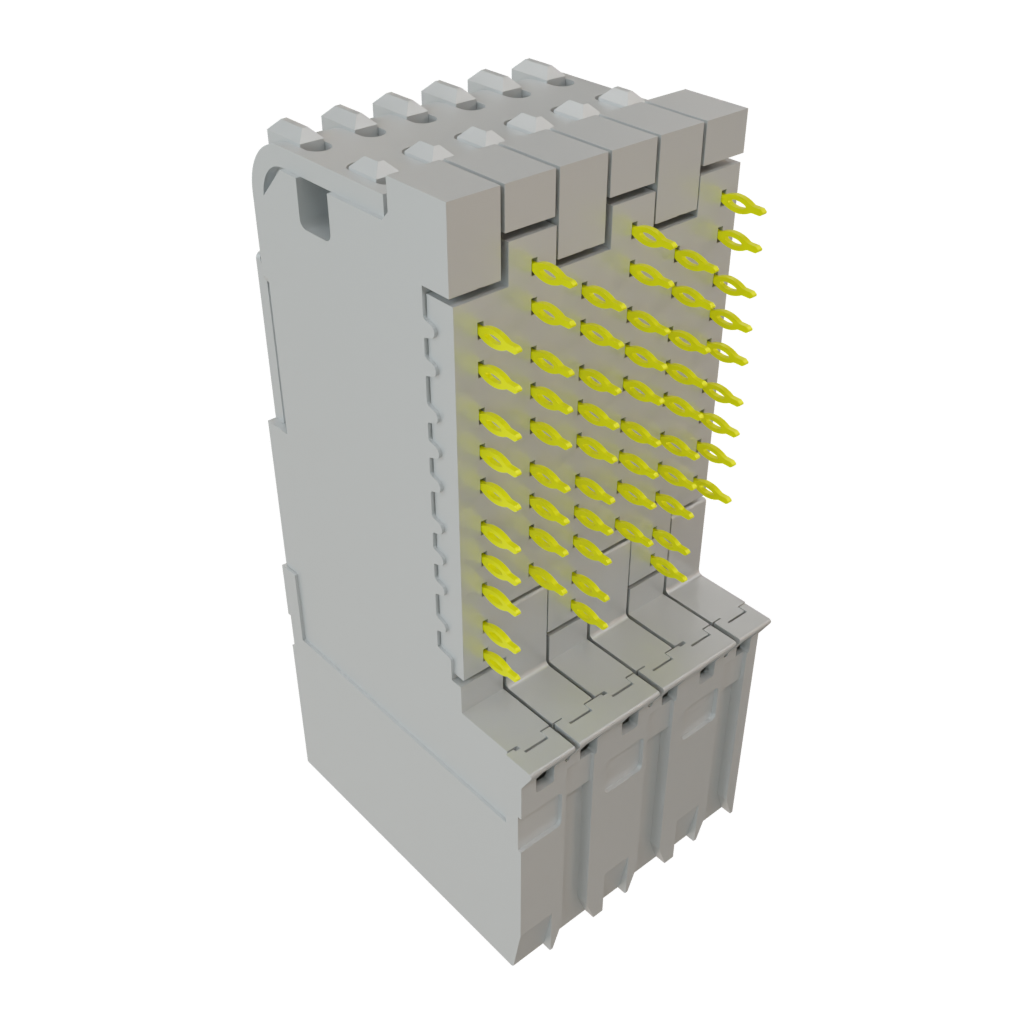

Name: Samtec HDTF-3-06-S-RA-LC-100
Brand: Samtec
SKU: 200-HDTF306SRALC100
Price: 11.11 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

200-HDTF306SRALC100

Mfr. No:

HDTF-3-06-S-RA-LC-100

Mfr.:

Samtec

Description:

High Speed/Modular Connectors XCede(R) HD 1.80 mm High-Density Backplane Right-Angle Receptacle

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec HDTF-3-06-S-RA-LC-100

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	11,11 €	11,11 €
	10,02 €	100,20 €
	8,93 €	223,25 €
	7,28 €	611,52 €
	6,72 €	1.693,44 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	High Speed/Modular Connectors
RoHS:
Product:	Receptacles
Number of Positions:	36 Position
Number of Rows:	6 Row
Pitch:	1.8 mm
Termination Style:	Press Fit
Contact Plating:	Gold
Series:	HDTF
Packaging:	Tray
Brand:	Samtec
Contact Material:	Copper Alloy
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Right Angle
Product Type:	High Speed / Modular Connectors
Factory Pack Quantity:	42
Subcategory:	Backplane Connectors
Tradename:	XCede

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

XCede® HD HDTF Right-Angle Backplane Receptacles

Samtec XCede® HD HDTF Right-Angle 1.8mm Backplane Receptacles feature a 1.8mm column pitch, 84 differential pairs per inch, and a modular design for application flexibility. These Samtec receptacles are available in 3-, 4-, and 6-pair designs with 4, 6, or 8 columns. The HDTF backplane receptacles are built with liquid crystal polymer (LCP) housing and copper alloy contact material. These receptacles are RoHS compliant and operate at -40°C to +105°C temperature range. XCede HD HDTF backplane receptacles mate with the XCede HD HDTM vertical backplane headers.

XCede® HD High-Density Backplane Systems

Samtec XCede® HD High-Density Backplane Systems combine a small form factor with incredible design flexibility for system and board space savings. These backplane systems allow for creating a fully custom backplane solution with guidance and keying, power modules, and sidewalls for increased durability. Samtec XCede HD backplane systems help prevent system downtime by implementing a staggered differential pin design where the ground pins mate first for hot-plugging. These backplane systems feature a 1.8mm column pitch, up to 3mm contact wipe on signal pins, and multiple signal/ground pin staging options.
