Vishay Semiconductors VGSOT ESD Protection Diodes

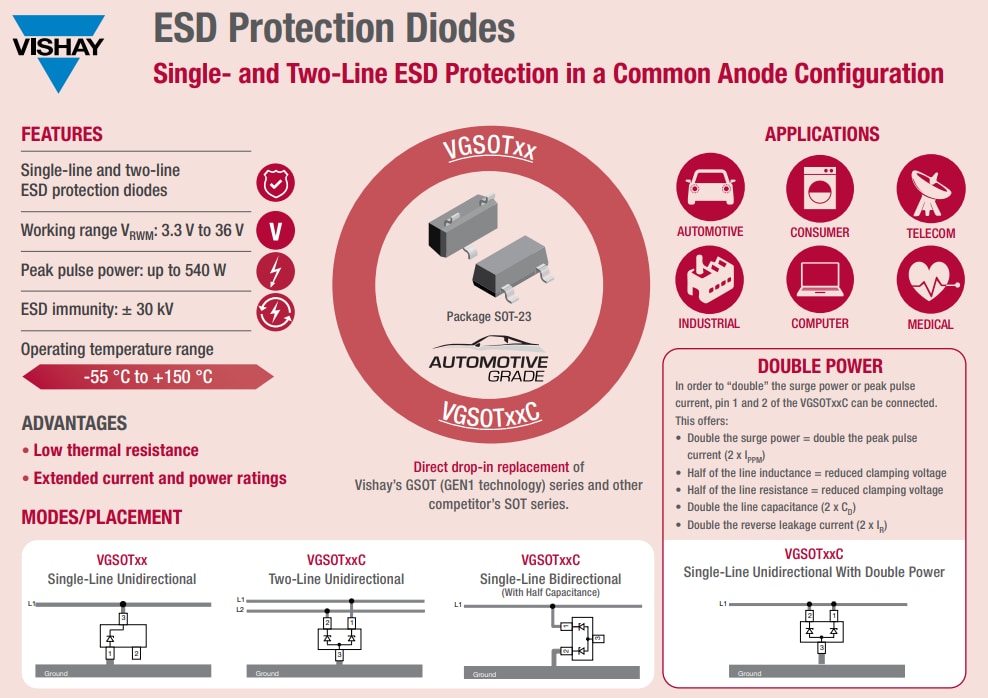

Vishay Semiconductors VGSOT ESD Protection Diodes offer low thermal resistance and extended current and power ratings. The diodes provide single- and two-line ESD protection in a standard anode configuration. The Vishay Semiconductors VGSOT Diodes have a working range of 3.3V to 36V and ±30kV ESD immunity. The VGSOT diodes are available in an SOT-23 package with an operating temperature range of -55°C to +150°C.
Features
- Single-line unidirectional ESD protection diode
- ESD immunity acc. IEC 61000-4-2 and ISO 10605
- ±30kV contact discharge
- ±30kV air discharge
- >8kV ESD capability according to AEC-Q101, human body model, class H3B
- e3 - Sn
- AEC-Q101 qualified available
Applications
- Automotive
- Consumer
- Industrial
- Computer
- Telecom
- Medical
Specifications
- 4V to 47V reverse breakdown voltage
- 3.3V to 36V reverse stand-off voltage
- 400W to 540W PPPM (8μs/20μs)
- 44W PPPM (10μs x 1000μs)
- ±30kV ESD immunity
- -55°C to +150°C operating temperature
- Unidirectional polarity
- SOT-23 package
- Single circuit configuration
Associated Diodes
Vishay Semiconductors Automotive TVS/ESD Diodes
AEC-Q101-qualified devices that provide a high surge capability for portable electronics.
Vishay TVS & ESD Protection Diodes
Diode-based circuit protection products that cover a full spectrum of electronic systems.
