Texas Instruments TPS562207EVM Evaluation Module
Texas Instruments TPS562207EVM Evaluation Module is a fully assembled and tested circuit for evaluating the TPS562207 step-down converter. The TPS562207 is a simple, easy-to-use, 2A Synchronous Step-Down Converter with FCCM in a SOT563-6 package.
The TI TPS562207EVM operates from 4.5V to 17V input (12V nominal) and provides a 1.05V output at 2A. The Evaluation Module also includes AC signal injection terminals for feedback loop measurements.
Features
- 4.5V to 17V input voltage range
- 0.6V to 7V output voltage range
- Up to 2A output current
- FCCM, forced-CCM
- Fast transient response
- 1.6mm x 1.6mm DRL package

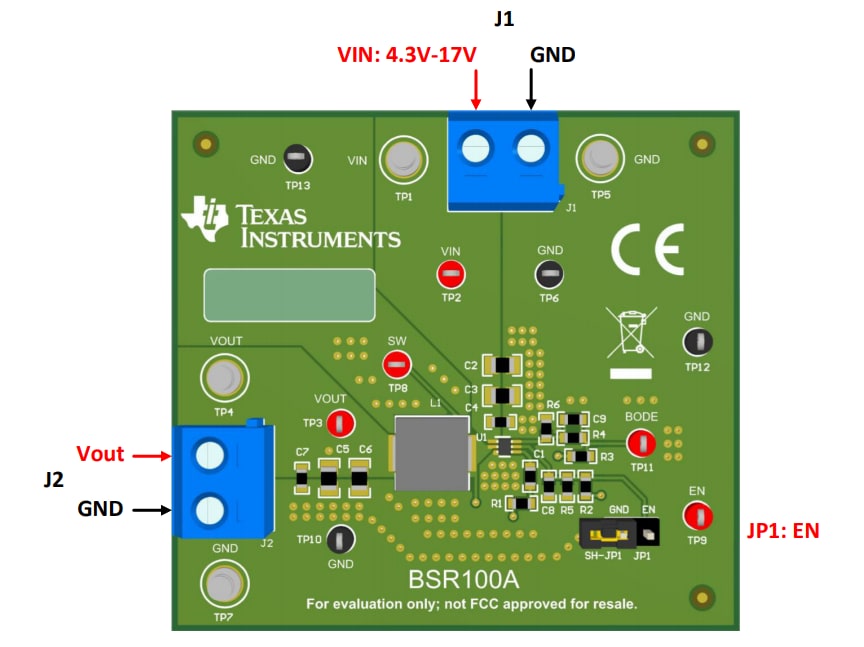

Connectors and jumpers placement
Related Products
Texas Instruments TPS562207 2A Synchronous Buck Converter
2A synchronous buck converter is optimized to operate with minimum external component counts.
