Texas Instruments TPS562202EVM Converter Evaluation Module (EVM)
Texas Instruments TPS562202EVM Converter Evaluation Module (EVM) is a fully assembled and tested circuit for evaluating the TPS562202. The TPS562202 is a simple, easy-to-use, 2A synchronous step-down converter with Eco-Mode in the SOT563-6 package. The Texas Instruments TPS562202EVM operates from 4.5V to 17V input (12V nominal) and provides a 1.05V output at 2A. It also includes AC signal injection terminals for feedback loop measurements.
Features
- 4.5V to 17V input voltage range
- 0.6V to 7V output voltage range
- Up to 2A output current
- PFM, PSM, Eco-Mode
- Fast transient response
- 1.6mm x 1.6mm DRL package

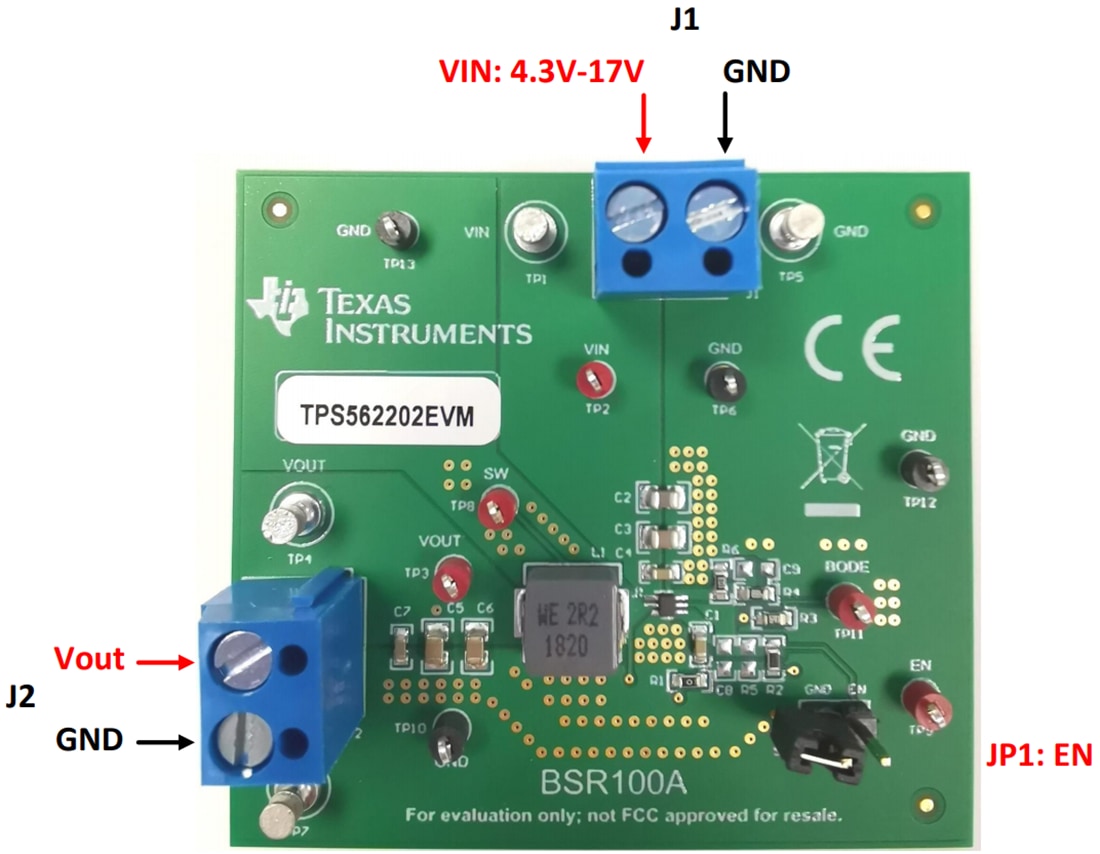

Connectors & Jumpers Placement
Related Product
Texas Instruments TPS562202 2A Synchronous Buck Converter
Optimized to operate with minimum external components and to achieve low standby current.
