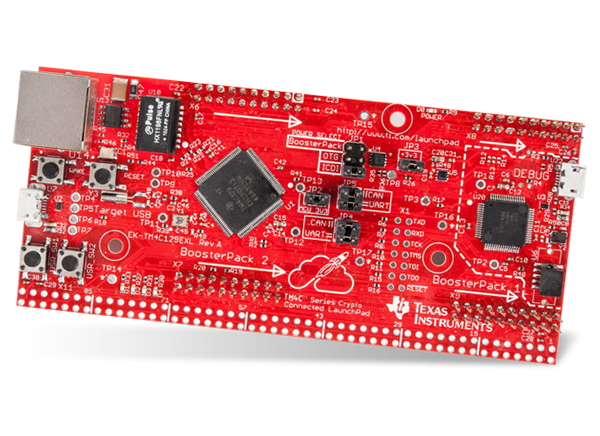

Texas Instruments EK-TM4C129EXL Crypto Connected LaunchPad

Texas Instruments EK-TM4C129EXL Crypto Connected LaunchPad is powered by hardware encryption accelerator-enabled MCUs. It enables engineers to develop high performance, data protected, connected IoT applications from secure cloud connection, building/factory automation and smart grid to industrial controls. This evaluation kit is a low-cost platform for ARM® Cortex-M4-based microcontrollers. The kit design highlights the TM4C129ENCPDT MCU with on-chip Crypto acceleration hardware. It includes 10/100 Ethernet MAC and PHY, USB 2.0, hibernation module, motion control pulse-width modulation and a multitude of simultaneous serial connectivity. The out-of-box demo for the Crypto Connected LaunchPad demonstrates the use of Transport Layer Security/Secure Sockets Layer (TLS/SSL) protocol to connect an IoT product to a cloud server securely. The TLS/SSL support is provided by WolfSSL library that uses the TM4C129E MCU's hardware crypto accelerators. This enables the development of secure connected applications at relatively higher performance.

Features

High performance TM4C129ENCPDT MCU
- 120MHz 32-bit ARM® Cortex®-M4-based microcontrollers CPU with floating point
- 1MB Flash, 256KB SRAM, 6KB EEPROM
- Crypto acceleration hardware
- Integrated 10/100 Ethernet MAC+PHY, 8x 32-bit timers
- Dual 12-bit 2MSPS ADCs, motion control PWMs
- USB H/D/O, and many additional serial communication interfaces

Dual, stackable BoosterPack XL connection sites
Onboard, in-circuit debug interface (ICDI)
Secured cloud connection out-of-box demonstration with TI RTOS, WolfSSL and Exosite
Intensive SW support with Tivaware & TI RTOS and multiple tool chain support: CCS, IAR, Keil, IAR, Mentor & GCC
