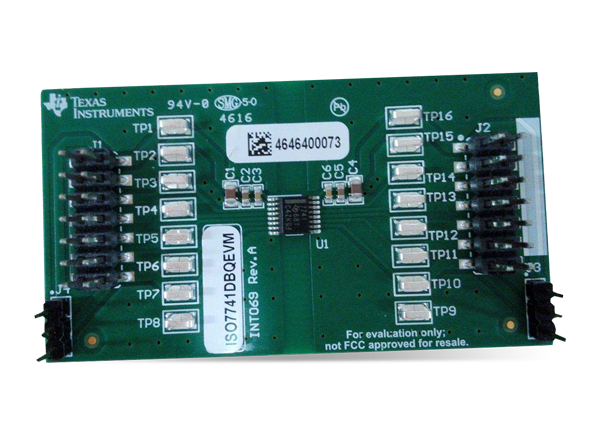

Texas Instruments ISO7741DBQ Evaluation Module
Texas Instruments ISO7741DBQ Evaluation Module is used to evaluate the high performance, reinforced quad-channel digital isolator ISO7741. The ISO7741DBQ evaluation module supports evaluation of any of the TI triple or quad-channel digital isolators in a 16-pin SSOP package. This evaluation module features enough test points and jumper options for one to evaluate the device with minimal external components.
Features
- High speed, robust EMC dual-channel digital isolator
- Wide supply and level translation range of 2.25V to 5.5V
- Up to 100Mbps high signaling rate
- 11ns typical (5V supplies) low propagation delay
- > 25 years isolation barrier life
Related Product
Texas Instruments ISO774x/-Q1 Quad-Channel Digital Isolators
High-performance isolators with 5000VRMS and 2500VRMS isolation ratings per UL 1577.
Texas Instruments ISO773x/-Q1 Triple-Channel Digital Isolators
Provide high electromagnetic immunity and low emissions at low power consumption.
