Texas Instruments DIGI-ISO-EVM Digital Isolator Evaluation Module

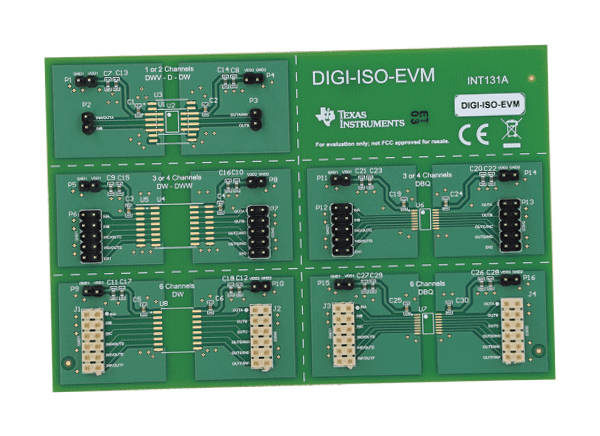

Texas Instruments DIGI-ISO-EVM Digital Isolator Evaluation Module (EVM) is used to evaluate any of the TI single-channel, dual-channel, triple-channel, quad-channel, or six-channel digital isolator devices. It works in five different packages - 8-pin NB SOIC (D), 8-pin WB SOIC (DWV), 16-pin WB SOIC (DW), 16-pin ultra WB SOIC (DWW), and 16-pin QSOP (DBQ) packages. The evaluation module features enough Berg pin options for one to evaluate the device with minimal external components.
Features
- Designed so that any TI digital isolator can be evaluated
- Supports single-channel, dual-channel, triple-channel, quad-channel, and six-channel devices
- Supports D, DWV, DW, DWW, and DBQ packages
- Various Berg pins provided for easy testing

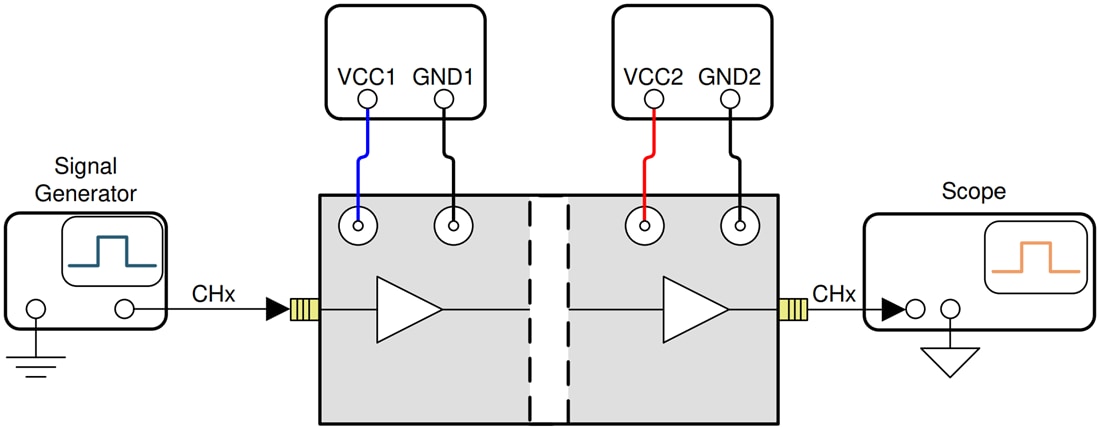

Test Setup
