Taoglas PA.500.A Warrior Band 28 Chip Antenna

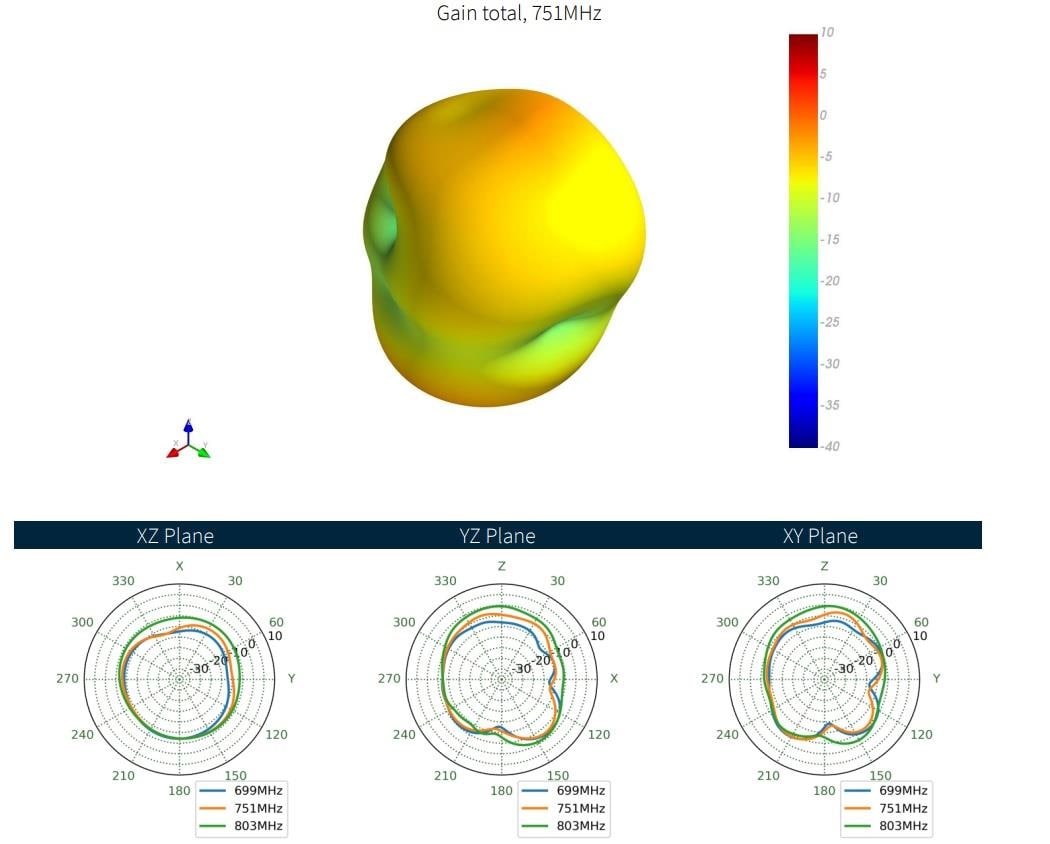

Taoglas PA.500.A Warrior Band 28 Chip Antenna delivers strong performance in a difficult frequency at cellular band 28 for IoT device applications. This antenna is designed to have no clearance area for easy integration. The PA.500.A chip antenna offers -1.3dBi peak gain, 50Ω impedance, linear polarization, and omni radiation pattern in a 703MHz to 803MHz frequency range. Band 28 is the main Australian 4G band in a redefined spectrum usage. This ceramic antenna is manufactured in an IATF16949-certified facility and comes in 40mm x 5mm x 6mm dimensions. Typical applications include tablets and smartphones, telematics and tracking, and compact IoT sensors.
