ScioSense ENS220 Barometric Pressure & Temp Sensor w/1kHz DR
ScioSense ENS220 Barometric Pressure and Temperature Sensor with 1kHz data rate is housed in a small LGA package with digital I2C and SPI interfaces. The ENS220 package allows for use cases in activity tracking, indoor navigation/localization, and fall-/liquid-level detection.
The ScioSense ENS220 features a capacitive pressure sensor integrated into a CMOS ASIC. This single-die solution permits small form factor packages with excellent immunity to changes in environmental conditions and achieves ultra-low current consumption due to the capacitive read-out. High intrinsic pressure sensitivity combined with an ultra-low noise 24-bit ADC converter produces unprecedented low-pressure noise. The integrated temperature sensor matches the performance of dedicated temperature measurement devices. The device guarantees a stable, temperature-compensated pressure output with a fast response time. The highly accurate pressure reading and the short conversion time make the ENS220 ideal for height measurements with a high output data rate and bandwidth.
Features
- Absolute / Relative accuracy at ±0.5hPa / ±0.025hPa (±2.5Pa is equivalent to a height of ±20cm in air)
- Low power on average supply current of 0.1μA at idle, 0.8μA when sampling at 1/60Hz
- Ultra-low noise of 0.1PaRMS (≈1cm in air) at 2Hz sample rate
- User-configurable sample rate up to 1kHz (0.9PaRMS)
- Temperature accuracy of 0.2K with 8mK resolution
- Fully digital interface with best-of-breed form factor
- Reliable cm resolution positioning and differential pressure measurements
- Perfectly integrates into space-constraint designs, e.g., mobiles, wearables, hearables
- Long battery life, even at high sampling rates
- Minimal peripheral BOM requirements
Applications
- Mobile/wearables
- Activity tracking
- Indoor localization/navigation
- Fall detection
- Gaming, AR/VR, and drones with height tracking
- Appliances/HVAC with filter clogging detection
- Liquid level detection
- Blood pressure measurement
- Accurate temperature meter for gasses and surfaces
Specifications
- P operating range of 300hPa to 1200hPa
- T operating range of -40°C to +85°C
- Power supply range of 1.62V to 1.98V
Videos

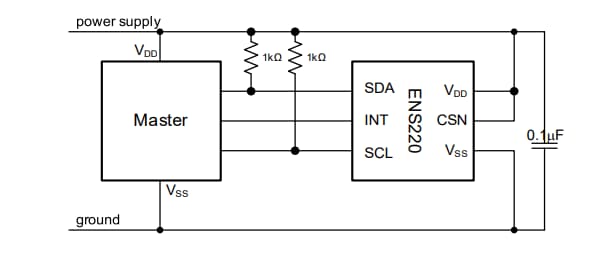

Typical application circuit
Pin Assignment
Associated Evaluation Kit
ScioSense ENS220 Evaluation Kit
Showcases the performance of the ENS220 barometric pressure sensor.
