Schurter Electronic Direct Current (EDC) Switches
Schurter Electronic Direct Current (EDC) Switches are compact, arc-free switches designed specifically for safe and reliable switching of direct current. These switches operate at a 5VDC to 48VDC supply voltage range and -40°C to 85°C operating temperature range. The EDC-01 is designed for the MSM II actuator and the EDC-02 is a stand-alone version for universal actuators. These switches are ideal for marine and boat equipment, industrial equipment, avionics, and medical devices.
Features
- 10A at 48VDC rated currents
- 2 designs with attachment points for different applications and additional actuator MSM II
- Equipped with quick-connect terminals to permit fast connection
- Small design
- No arcing due to the electronic circuit
- Extremely long lifespan of 1 million actuations
- 5VDC to 48VDC supply voltage range
- 3.0N actuating force
- -40°C to 85°C operating temperature range
- RoHS and REACH Compliant
Applications
- Industrial equipment
- Medical devices
- Avionics
- Energy
- Marine and boats

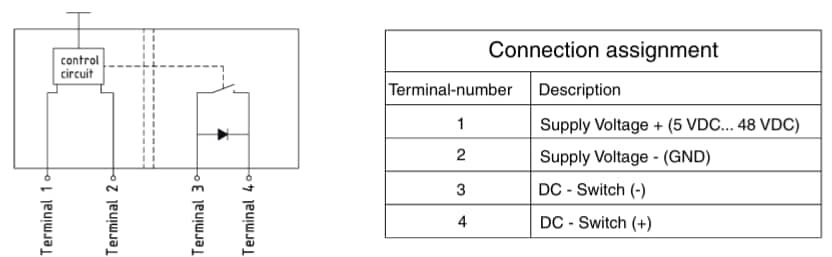

Connection Assignment
Additional Resource
