Rosenberger NEX10® RF Coaxial Connector System
Rosenberger NEX10® RF Coaxial Connector System includes connectors and adapters that are designed to meet the existing and future demands of small cell and 5G networks. This miniature low Passive Inter-Modulation (PIM) connector system includes in-series or between-series adapters, jacks (square flange or bulkhead), and plugs (straight or right angle). The NEX10 interface offers very low PIM performance with robust design and compact size. These connectors feature a small size with a minimum flange height of 12.7mm, allowing compact and lightweight modules.
The NEX10 connectors feature separation of electrical contact from the mechanical reference. This yields a low PIM and high RL performance regardless of the coupling mechanism or applied torque. These connectors offer two possible mechanical connections (screw type and push-pull) that provide flexibility during installation.
Between-Series/In-Series Adapters
Between Series RF Adapters connect RPC-3.50 plug to NEX10 jack, NEX10 jack to SMA jack, NEX10 plug to SMA jack, and so on. The 89K101-K00N1 In-series RF adapter connects NEX10 jack to NEX10 jack and 89S101-S00N1 In-series adapter connects NEX10 plug to NEX10 plug.
Rosenberger 89W000-001 NEX10 Torque Wrench is pre-set at the factory to the desired value within a ±4% tolerance. This torque wrench produces a distinct click which can be felt and heard when preset torque value is achieved. This is followed by a sudden release into several degrees of free movement. The 89W000-001 torque wrench is ideal for applications in which one torque value is used extensively.
Features
- Separation of electrical contact from the mechanical reference yields a low PIM and high RL performance regardless of the coupling mechanism or applied torque
- Robust design prevents any damage in the event of cable movement or vibration
- Contact areas protected against damage during handling
- Interface-specific weather protection boot providing a uniform and tested solution as a standard product
- Up to 20GHz excellent RL performance and high screening efficiency, offering reliable electrical performance
- Small size and minimum flange height of 12.7mm, allowing compact and lightweight modules
- Two possible mechanical connections (screw type and push-pull) for flexibility during installation
- Eliminates installation errors
Applications
- Small cells for challenging space restrictions and electrical performance requirements
- Multi-operator/multiband distributed antenna systems (DAS) where RF signals have to be combined, terminated, or distributed to antennas
- Low-power base stations for interconnections in the remote radio head (RRH) and as an interface on the antenna and jumpers
- MIMO to speed up the installation, especially by covering four or five signal paths with one mechanical connection
- In-building architecture
Specifications
- 50Ω impedance
- DC to 20GHz frequency range
- ≥166 dBc @ 2 × 43dBm passive inter-modulation (PIM)
- Return loss
- ≥36dB @ DC to 4GHz
- ≥34dB @ 4GHz to 6GHZ
- ≥30dB @ 6GHz to 10GHz
- ≥20dB @10GHz to 20GHz
- Mating cycles
- ≥100 for standard applications
- ≥ 500 for test and measurement types
- 50N typical engagement force
- 35N typical disengagement force
- IP68 degree of protection

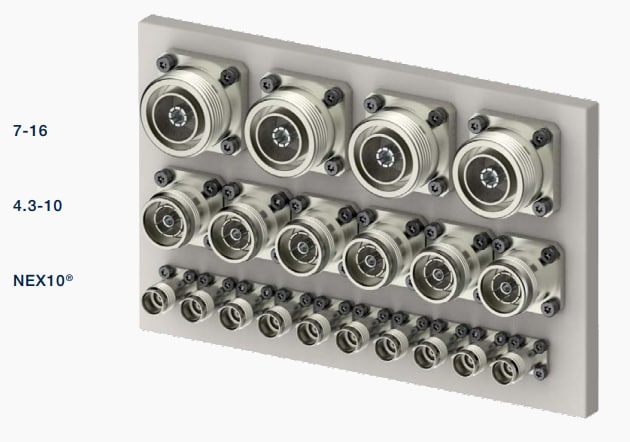

Assembly Size Comparison
Performance Graph
