ROHM Semiconductor LTR High Power Thick Film Shunt Resistor
ROHM Semiconductor LTR High Power Thick Film Shunt Resistor is a 10mΩ low ohmic chip resistor designed for current detection. The structure of the resistor has a short distance between both terminations that helps attain strong soldering fixation. The LTR resistor achieves higher power and accuracy in a compact size and an improved element structure ensures a superior Temperature Coefficient of Resistance (TCR). This LTR shunt resistor has high joint reliability and increased anti-sulfuration performance. The LTR resistor is ideal for LED headlamps, motor peripheral circuits, communication base stations, FA equipment, AC, washing machines, and refrigerators.
Features
- 10mΩ low ohmic chip resistor designed for current detection
- High joint reliability with long side terminations
- Improvement of rated power displaces smaller size of resistor and saves space
- Improved element structure ensures a superior Temperature Coefficient of Resistance (TCR)
- ISO9001 / TS16949 certified
- Corresponds to AEC-Q200
- Achieves higher power and accuracy in a smaller size
- Increased sulfuration resistance
Applications
- LED headlamps
- Motor peripheral circuits
- Communication base stations
- FA equipment
- AC
- Washing machines
- Refrigerators

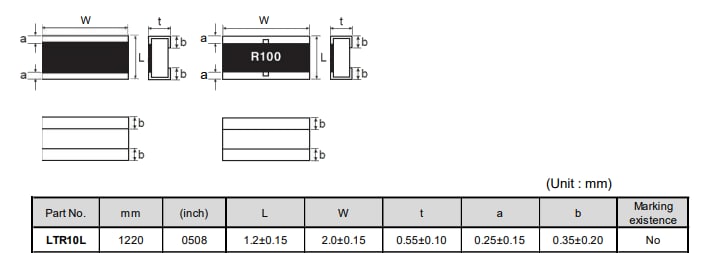

Dimensions Diagram

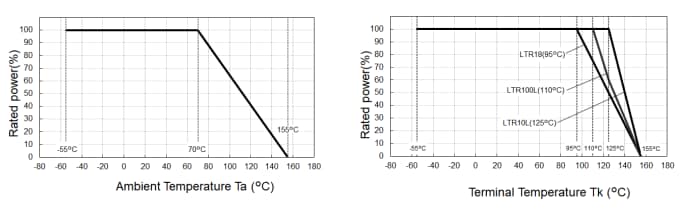

Performance Graph
Additional Resource
Published: 2023-06-01
| Updated: 2023-06-08
