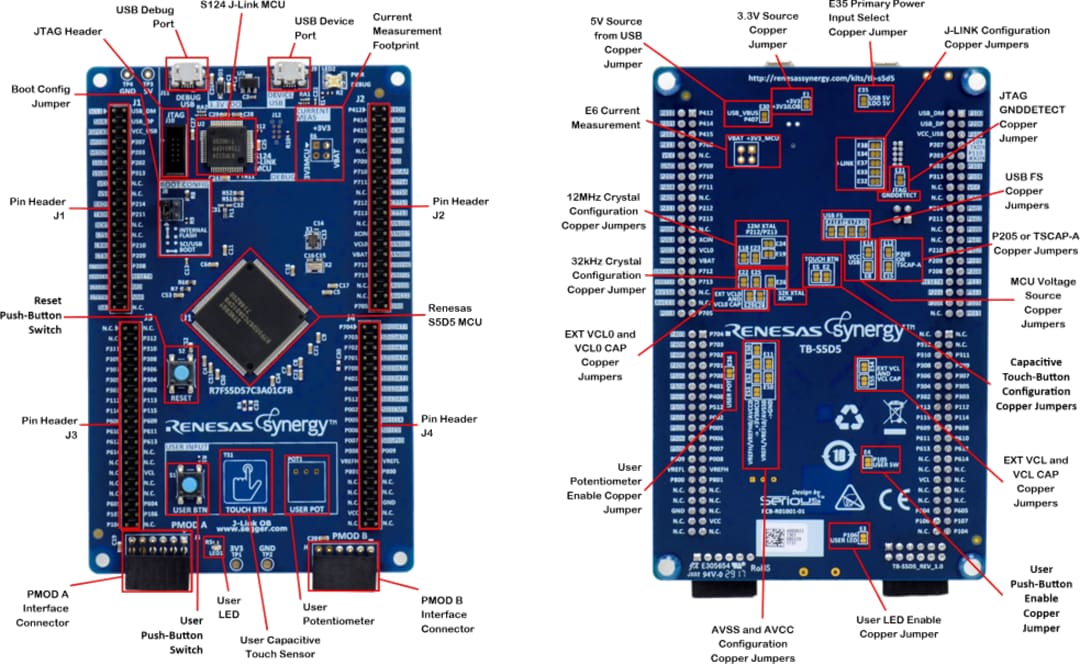

Renesas Electronics TB-S5D5 Target Board Kit (RTK7TBS5D5S00001BU)

Renesas Synergy™ TB-S5D5 Target Board Kit (RTK7TBS5D5S00001BU) enables users to evaluate, prototype, and develop IoT endpoint devices and experience best-in-class connectivity with the 120MHz Arm® Cortex®-M4 core, S5D5 Microcontrollers (MCUs). Users can experience the full features of the Synergy™ S5D5 MCUs with access to all pins, standardized expansion ports, and preinstalled demo software.

The Renesas Electronics TB-S5D5 Target Board Kit features a pre-installed Synergy S5D5 Arm Microcontroller.

Features

Pre-installed Synergy S5D5 Arm Microcontroller
Access to all pins and on-board peripherals of the S5D5 MCU
Accelerate code development with the tightly integrated and qualified Synergy Software Package (SSP)
View, step through, and debug code with the e² studio ISDE from Renesas or IAR Embedded Workbench^® for Renesas Synergy
Flexible connectivity options with USB and Pmod™ connector enabling rapid prototyping with plug-in modules
Human-machine interface (HMI) functionality with a capacitive touch sensing unit (CTSU) and a parallel data capture unit (PDC)
See system status and test functionality with programmable LEDs or capacitive and mechanical buttons

Measure real-time power consumption of current over program execution
Operate from high precision onboard crystals or lower precision internal clock
Security and encryption functions enable secure data communications and storage, with support for industry-standard algorithms such as AES, DSA, 3DES, RSA, SHA, and GHASH
Safety features include hardware diagnostics, memory protection, and watchdog timeout
Debugging and programming with J-Link^® OB on-board
