Renesas Electronics Metered Electric Vehicle (EV) Charging Station
Renesas Electronics Metered Electric Vehicle (EV) Charging Station is designed for connected consumer and business EV chargers. The solution's modular approach allows a variety of connectivity solutions ranging from Wi-Fi, Cat-M1 LTE, or PLC, with the option to add interfaces like Ethernet, BLUETOOTH® Low Energy (LE), or wired communication through a MODBUS interface. The available NFC reader allows for customized billing and access control. Power consumption can be monitored in a standard AC power environment through a modular metrology solution supporting load balancing and safety features.
Features
- Flexible solution supporting 1- to 3-phase solutions
- MCU supports dual-flash bank operation permitting safe over-the-air (OTA) updates and fallback
- High-voltage AC/DC eliminates the need for optocouplers

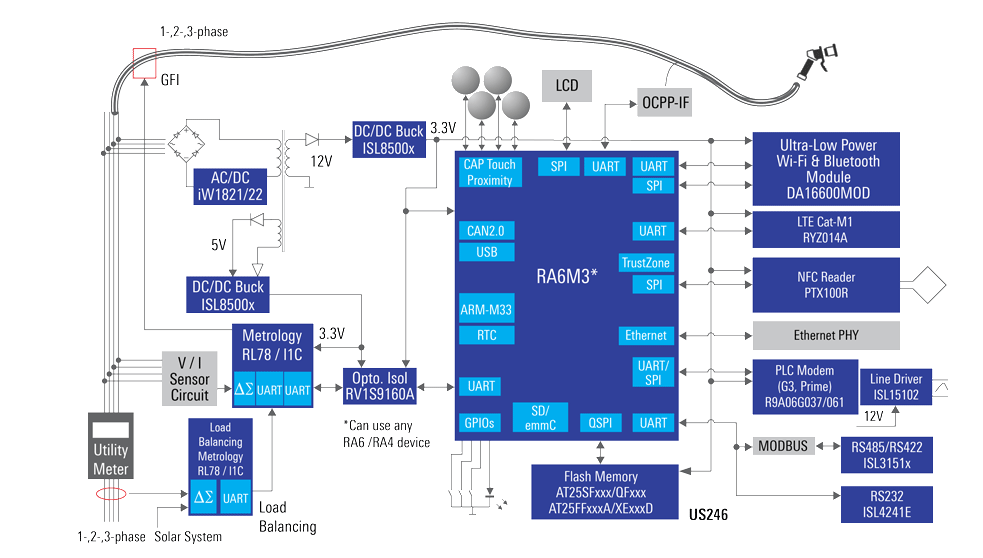

SYSTEM BLOCK DIAGRAM
FEATURED PRODUCTS
Renesas Electronics RA6M3 32-Bit Microcontroller Group
120MHz Arm Cortex-M4F core, with a TFT controller, 2D accelerator, and JPEG decoder.
Renesas Electronics RAA211651 Integrated Switching Regulator
Feature a Constant On-Time (COT) control scheme.
Renesas Electronics RAA211412 DC-DC Step-Down Regulator
Supports a wide operating input voltage range from 5.8V to 45V and adjustable output voltage.
Renesas / Dialog DA16600 Wi-Fi® + BLUETOOTH® Low Energy Modules
Designed to easily add low-power Wi-Fi® an BLUETOOTH® Low Energy functionality to applications.
Renesas Electronics ISL315xE RS-485/RS-422 Differential Transceivers
Features high output drive and high ESD protection and includes half and full-duplex transceivers.
Renesas Electronics RV1S9x60A High Speed Photocouplers
15Mbps photocouplers ideal for industrial automation and green energy systems.
