Raydiall Automotive HSD PCB 90° Connectors

Raydiall Automotive HSD PCB 90° Connectors feature up to 2Ghz frequency with 100Ω impedance and 100V voltage rating. These lightweight connectors offer a right-angle orientation, PCB mounting style, and stamped and rolled technology. The series is suitable for reflow soldering and has an operating temperature range of -40°C to +105°C. Raydiall Automotive HSD PCB 90° Connectors are qualified for Tiers specifications and comply with ISO 20860 and USCAR 17 standards.

Features

  • Lightweight
  • Right-angle orientation
  • PCB mounting style
  • Reflow soldering process
  • Stamped and rolled technology
  • Ideal for automotive applications
  • Qualified for Tiers specifications
  • Compliant with ISO 20860 and USCAR 17 standards
  • Tape and reel packaging available
  • RoHS compliant

Specifications

  • Up to 2Ghz frequency
  • 100Ω impedance
  • 100V voltage rating
  • -40°C to + 105°C operating temperature range

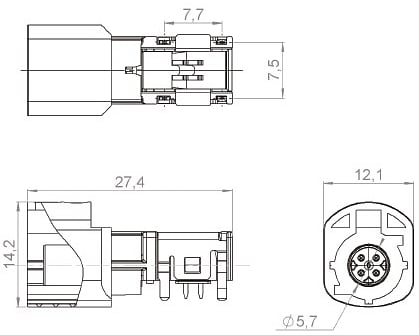

Dimensions (mm)

Raydiall Automotive HSD PCB 90° Connectors
