onsemi AR0341 Hyperlux Image Sensor Power Tree
onsemi AR0341 Hyperlux Image Sensor Power Tree is a part of the Hyperlux family, which includes automotive-grade, ADAS, and AMR devices (3MP, 1/3.6" format). The power tree is designed to support three different input voltages starting from 5V, 18V, and 48V while enabling flexible powering through LDOs, Buck Converters, and a PMIC. It also provides power for onsemi's local ISP and remote ISP via the PMIC, ensuring optimized performance across diverse configurations.

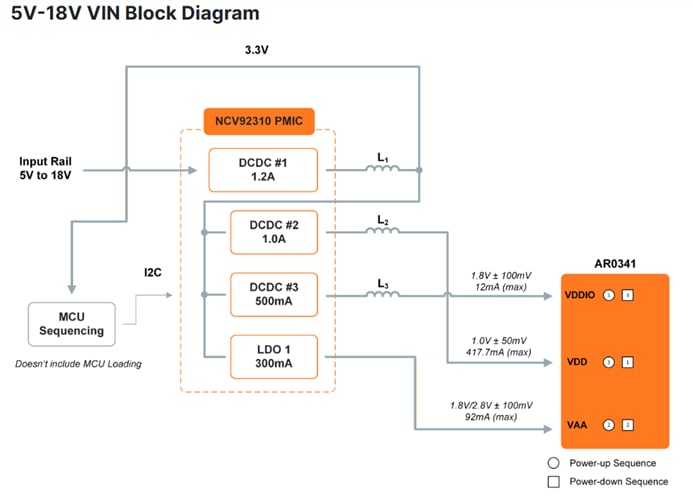

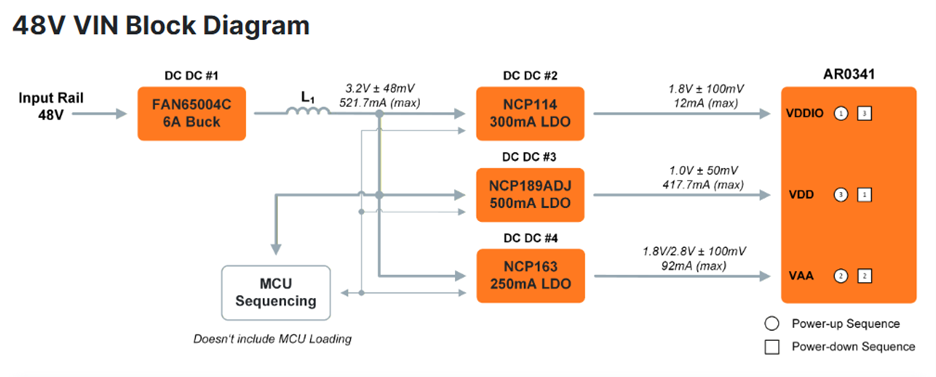

Block Diagram
Featured Product
onsemi Hyperlux AR0341AT 2.1μm 3MP CMOS Image Sensor
1/3.6" optical format, 1920 x 1536 pixel array at up to 60fps, achieves 150dB HDR with LFM.
onsemi FAN6500xx Switching Controllers
High-performance 65V, 6A,8A, and 10A voltage mode synchronous PWM buck regulators.
onsemi NCV92310 Automotive Power Over Coax (POC) PMIC
Supplies power over coax automotive app sub-systems such as rear, front, and surround view cameras.
Related Regulators
onsemi FAN53745 Synchronous Buck Regulator
A DC-DC converter that delivers a regulated output voltage from an input supply of 2.3V to 5.5V.
onsemi NCP114 300mA CMOS Low Dropout Regulators
LDO that provides a stable, accurate voltage with low noise ideal for noise sensitive applications.
onsemi Ultra-High PSRR LDO Regulators
Include the NCV816X and NCP16x families of linear regulators.
onsemi NCP189 Low Noise LDO Linear Regulators
500mA LDO Regulators with next-generation high PSRR and Power Good open collector output.
Related Solutions
onsemi Hyperlux Image Sensor Power Trees
Deliver advanced image sensor power solutions for next-generation Hyperlux image sensing platforms.
