NXP Semiconductors SJA1110-MGS-EVM Evaluation Board
NXP Semiconductors SJA1110-MGS-EVM Evaluation Board is a compact, cost-effective multi-gig secure evaluation board, ideal for automotive Ethernet use cases. Consisting of the NXP SJA1110 switch along with TJA1121 and TJA1104 PHYs, the board demonstrates MACsec security on both PHYs and enables rapid prototyping with integrated software examples based on Real-Time Drivers (RTDs).
Features
- Hardware
- Secure variant of the SJA1110 switch
- 100BASE-T1 (SJA1110 internal PHYs)
- 1x 100BASE-T1 Ethernet port using the TJA1104 automotive Ethernet PHY
- 2x 1000BASE-T1 Ethernet port using the TJA1121 automotive Ethernet PHY
- 1x SFP+ cage
- JTAG connector
- Several LEDs for status indication
- DIP switches for easy configuration
- USB Type-C® connector for SPI access
- Power supply based on VR5510 PMIC
- Software
- Software examples based on Real-Time Drivers (RTDs)
- gPTP software stack
- TCP/IP software stack
Applications
- Automotive access points
- Automotive data loggers
- Automotive zone controllers
- Central compute
- Domain controllers
- Firmware Over-the-Air (FOTA)
- Gateways
- Service-oriented gateways
Block Diagram

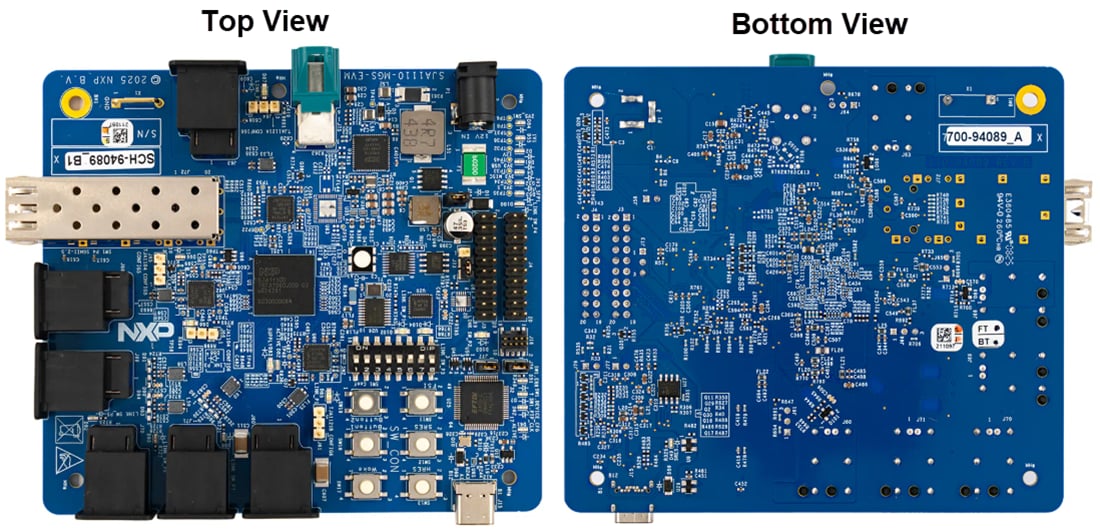

Board Layout
Related Products
NXP Semiconductors SJA1110 Secure TSN Ethernet Switch
A four-pin-compatible and software-compatible automotive Ethernet Switch SoC.
NXP Semiconductors TJA1104 MACsec Enabled 100BASE-T1 Ethernet PHY
Addresses future network security concerns and provides an efficient HW-based solution with MACsec.
NXP Semiconductors TJA1121 MACsec Ethernet PHY Transceiver
This device provides an efficient HW-based solution for MACsec at a 1Gbps line rate.
NXP Semiconductors VR5510 Multi-Output PMICs
Automotive Multi-Output PMICs designed for Gateway, ADAS, V2X, and infotainment applications.
