Nisshinbo NJU7870 Differential Amplifier IC
Nisshinbo NJU7870 Differential Amplifier IC Includes an integrated resolver excitation function and is housed in an SSOP16-B3 package. This amplifier IC features a built-in 2-channel excitation circuit for differential voltage input and differential current output. It is possible to control each circuit from the external input and combine it with resolver systems, such as 1-phase or 2-phase excitation. Additionally, the NJU7870 achieves high-precision performance matching for each phase, which can be challenging to accomplish with a discrete configuration. The NJU7870 amplifier IC features a 4.5mA typical supply current, 2.4V to 5.5V operating voltage range, and -40°C to 125°C operating temperature range. Typical applications include angle resolver.
Features
- Integrated resolver excitation function
- Built-in 2-channel excitation circuit for differential voltage input/differential current output
- Thermal shutdown
- Shutdown function
- RoHS compliant
Specifications
- 4.5mA typical supply current
- 2.4V to 5.5V operating voltage range
- ±7V maximum differential input voltage
- -40°C to 125°C operating temperature range
- -55°C to 150°C storage temperature range
- SSOP16-B3 package
Applications
- Angle resolver

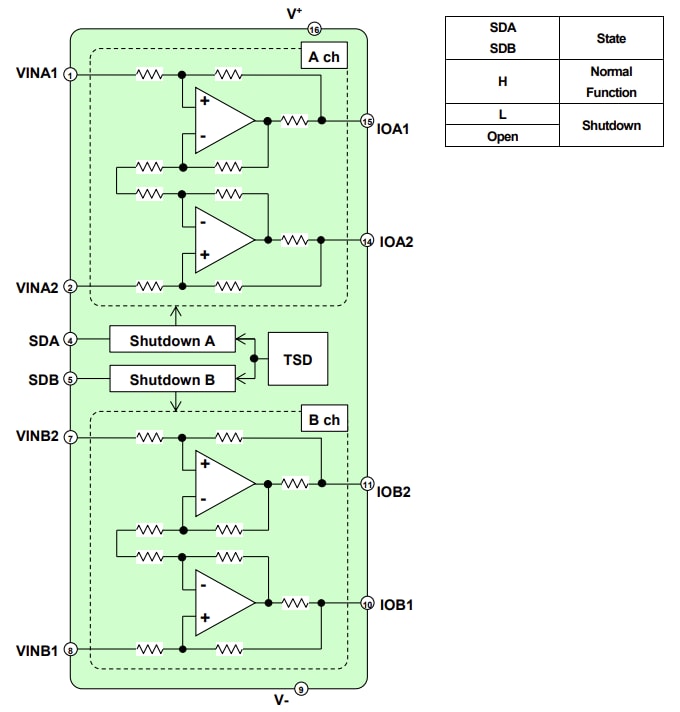

Block Diagram

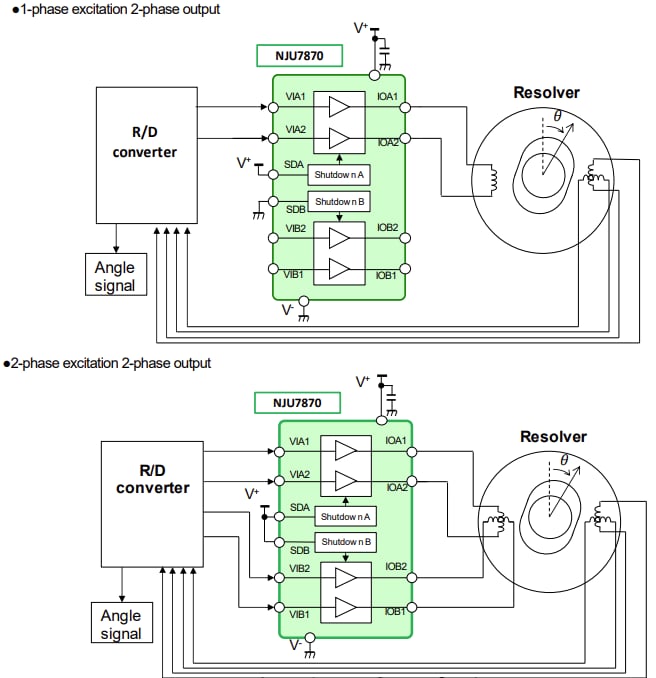

Typical Application Diagram
Package Dimensions
Published: 2023-10-17
