NewAE Technology ChipWhisperer® HuskyPlus Kit
NewAE Technology ChipWhisperer® HuskyPlus Kit is an open-source project capable of achieving advanced power analysis and fault injection. The kit offers a wide range of both hardware and software.
The NewAE ChipWhisperer HuskyPlus Kit includes the ChipWhisperer Husky, CW313 board, SAM4S target, iCE40 target, SMA cables, ChipWhisperer 20-pin connector breakout wires, MCX to SMA and MCX to BNC, 20-Pin cables, USB Type-C® cable (with USB-A adapter), Jumper wires and caps, and CW308 target to CW312 adapter.
Features
- Larger ADC sample buffer (327828 samples vs 131124 samples)
- Larger logic analyzer sample buffer (65552 samples vs 16376 samples)
- Faster ADC (250MS/s vs 200MS/s)
- Larger TraceWhisperer sample buffer (32776 samples vs 8188 samples)
- Longer trigger sequences (up to 4 sequenced triggers vs 2)

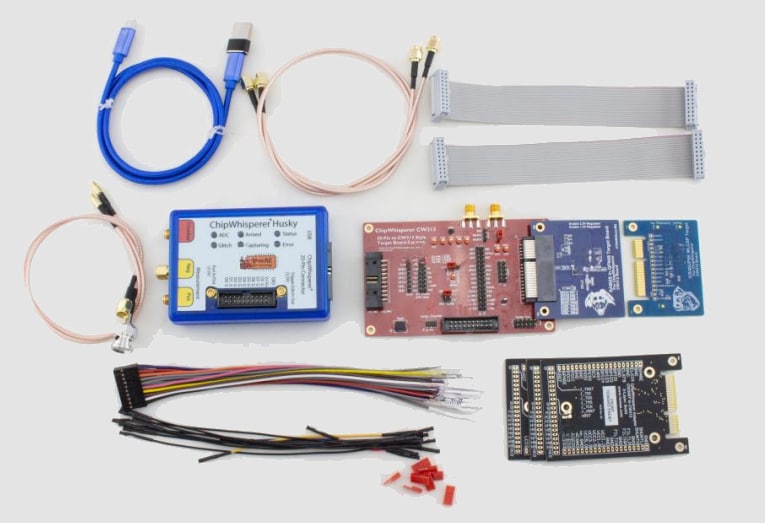

Kit Contents
- ChipWhisperer Husky
- CW313 board
- SAM4S target (Inserted)
- iCE40 target
- SMA cables (×2)
- ChipWhisperer 20-pin connector breakout wires
- MCX to SMA and MCX to BNC
- 20-Pin cables (×2)
- USB-C cable (with USB-A adapter)
- Jumper wires and caps
- CW308 target to CW312 adapter
Overview
Published: 2025-07-17
| Updated: 2025-12-09
