ISI / Molex XU-AWG PCI Express XMC Module

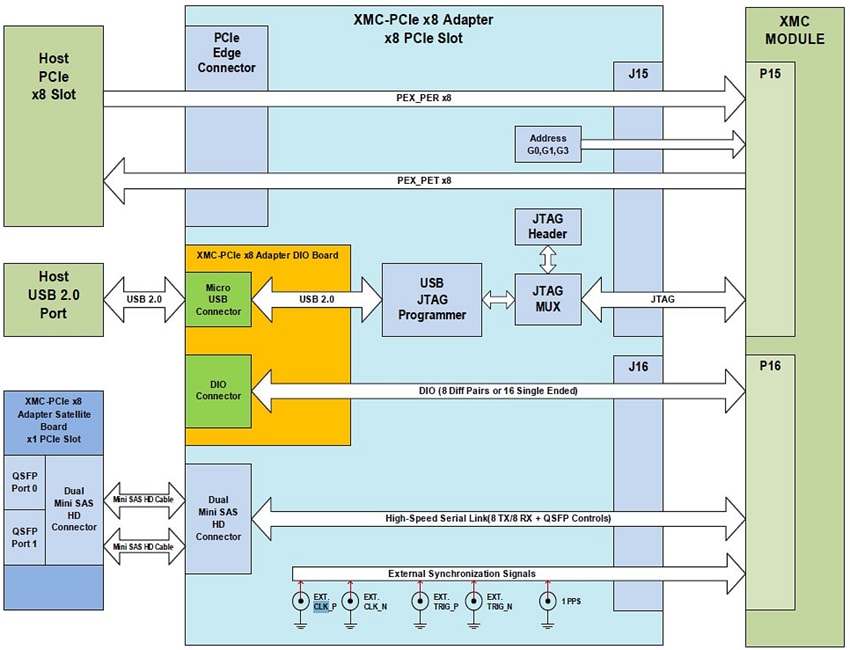

ISI / Molex XU-AWG PCI Express XMC Module features two eight-lane high-speed serial links: one on XMC connector P15 and one on P16. These links can support several protocols, including up to eight-lane PCIe, Aurora, or user defined. The XU-AWG XMC card has two AC-coupled single-ended digital-to-analog converter (DAC) outputs with programmable DC bias. The high-speed, high-performance Analog Devices AD9162 DACs employ synchronization support, fixed latency, interpolation, and unique output circuits providing improved frequency synthesis in the 2nd and 3rd Nyquist zones. A Xilinx Kintex® Ultrascale XCKU060 FPGA with 4GB DDR4 RAM memory offers a high-performance DSP core for demanding applications such as RADAR and wireless IF generation. The close integration of the analog front-end, memory, and host interface with the FPGA enable real-time signal processing.

Typical applications for ISI / Molex XU-AWG PCI Express XMC Module include high-speed arbitrary waveform generation, IP development, instrumentation, automated test equipment software, and much more.

Features

AD9162 DAC supports enhanced second and third Nyquist and frequency doubling 2x modes
Single-ended AC-coupled outputs with programmable DC bias digital inverse sinc filter
48-bit NCO
Fixed deterministic latency
Interpolation filters: 1x (bypass mode), 2x, 3x, 4x, 6x, 8x,12x,16x, 24x
Internal TI LMK04828 or LMK04821 primary reference PLL with zero delay mode

Individually delay-controlled reference clock to each DAC secondary PLL and FPGA
Advanced triggering input registered to JESD204B reference clock
Internal or external reference clock
External clock and trigger inputs
Reference clock output
XCKU060 Xilinx Kintex Ultrascale FPGA
4GB DDR4 DRAM in 2 banks each with 64-bit interface
