Mitsubishi Electric X-SERIES High Voltage IGBT Modules
Mitsubishi Electric X-SERIES High Voltage IGBT Modules offer HVIGBT modules to meet market requirements for higher efficiency, downsizing and weight reduction, and smaller drive circuits. The Mitsubishi Electric X-SERIES are used in systems for power electronics equipment such as railway traction and large industrial machinery that require high withstand voltage and high current.
Features
- Reduces power loss by equipping a 7th generation IGBT and RFC diode
- Contributes to the downsizing of inverters by reducing the external size by approximately 33% with the same withstand voltage and rated current as conventional products
- Optimization of package internal structure has improved heat dissipation, moisture resistance, and flame retardance for a longer product life
Applications
- Railway traction
- Power transmission
- Power supply/UPS
- Motion control

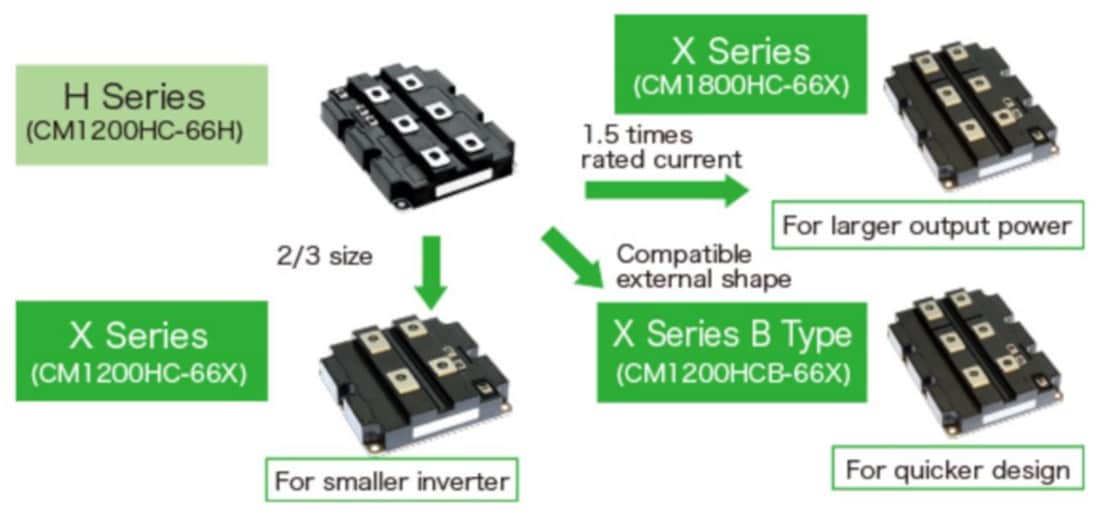

Replacement Comparison
