Mini-Circuits PMA Low Noise, High IP3 Monolithic Amplifiers

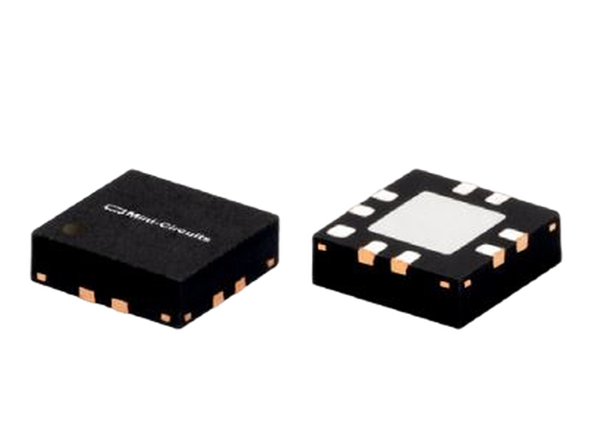

Mini-Circuits PMA Low Noise, High IP3 Monolithic Amplifiers are E-PHEMT-based ultra-low noise MMIC amplifiers, internally matched to 50Ω, that combine low noise and high IP3. These components operate over single 3V or 5V supplies in a -40°C to +85°C operating temperature range and measure 3mm x 3mm. The PMA Low Noise, High IP3 Monolithic Amplifiers are ideal for use in sensitive receiver applications.

Features

  • High gain
  • Low noise figure
  • High IP3
  • Single positive supply voltage
  • Micro-miniature 3mm x 3mm size
  • Aqueous washable
  • RoHS compliant

Applications

  • Cellular
  • ISM
  • GSM
  • WCDMA
  • LTE
  • GPS and more

Specifications

  • 50MHz up to 6GHz
  • 5.2dB to 30dB gain range
  • 31.1dB to 2.5dB noise figure range
  • 20mA to 158mA operating supply current range
  • 5VDC or 6VDC voltage rating
  • 500mW or 1.35W power dissipation
  • Temperatures
    • -40°C to +85°C operating
    • Storage as low as -65°C and up to +150°C
    • +150°C channel
  • 20dBm or 25dBm input power
  • Si technology
Published: 2021-08-16 | Updated: 2024-02-16
