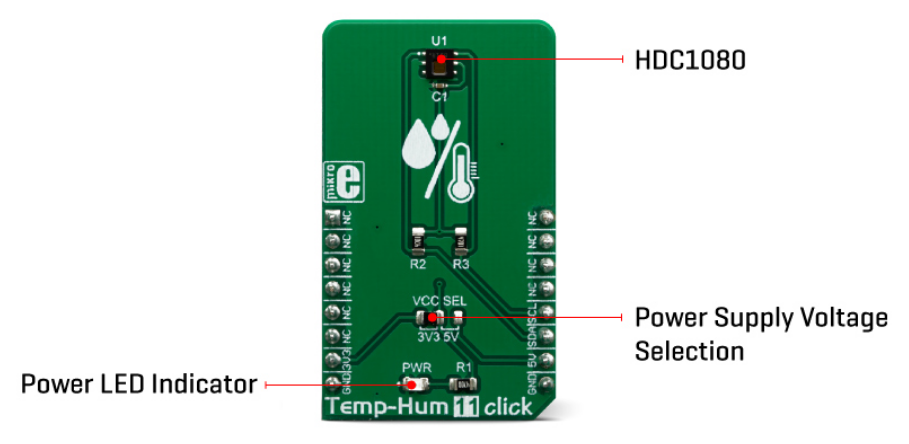

Mikroe MIKROE-3469 Temp & Hum 11 Click

Mikroe MIKROE-3469 Temp and Hum 11 Click has the HDC1080 high-accuracy digital humidity and temperature sensor. The Mikroe board features low power consumption and measurement accuracy. The HDC1080 sensor can sense the relative humidity (RH) with an accuracy of ±2%. Temperature can be sensed with an accuracy up to ±0.2⁰C. The click board has a 14-bit measurement resolution and can be operated over a wide supply voltage range. This allows it to be interfaced with 5V and 3.3V MCUs without requiring additional components.

Features

On-board modules HDC1080, a relative humidity and temperature sensor with I²C Interface, by Texas Instruments
High accuracy, good linearity, proven reliability, long-term stability, excellent repeatability, low power consumption, etc.

I²C interface
3.3V, 5V input voltage
M (42.9mm x 25.4mm) click board size

Applications

A perfect solution for various IoT-based RH and temperature measuring applications, smart homes, HVAC systems, air conditioner remote controllers, etc.
