Mikroe Boost 3 Click
Mikroe Boost 3 Click has a boost converter with an integrated current mirror function. The Mikroe Boost 3 Click board features the Texas Instruments (TI) TPS61391 700kHz Pulse-Width Modulating (PWM) Step-Up Converter with a 70V switch FET and an input voltage of up to 5.5V. The TPS61391 includes an accurate current mirror with two selectable gain options (1:5 or 4:5). The TI converter provides high optical power protection with an additional FET in series with the APD power path, with a typical response time of 0.5µs.
Features
- TPS61391 700kHz PWM Step-Up converter onboard
- An under-voltage lockout
- High optical power protection
- 20V to 70V output voltage range
- Current mirror function
- GPIO interface
- mikroBUS compatibility
- M (42.9mm x 25.4mm) Click board size
- 3.3V or 5V input voltage
Applications
- Biasing and monitoring avalanche photodiodes (APD) in optical receivers
- High-voltage sensor supplies
- Battery-powered devices
- Automotive

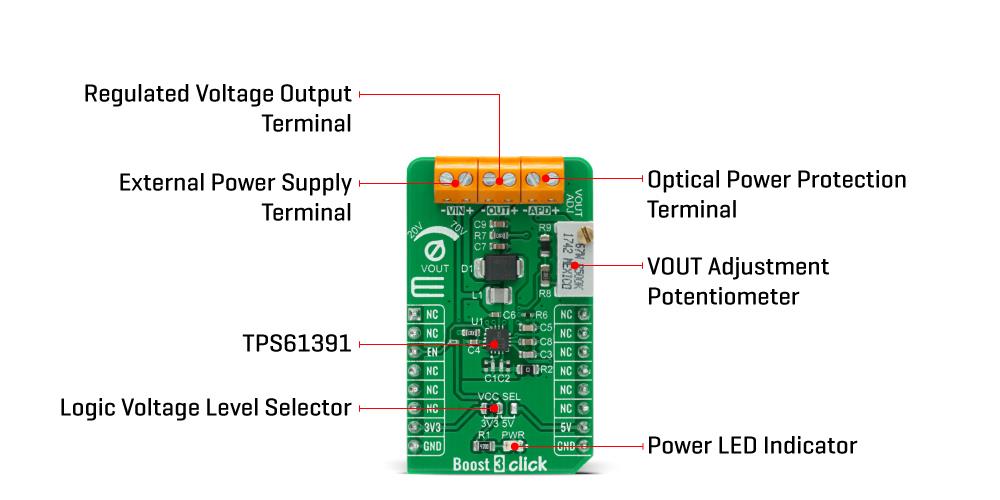

Overview
