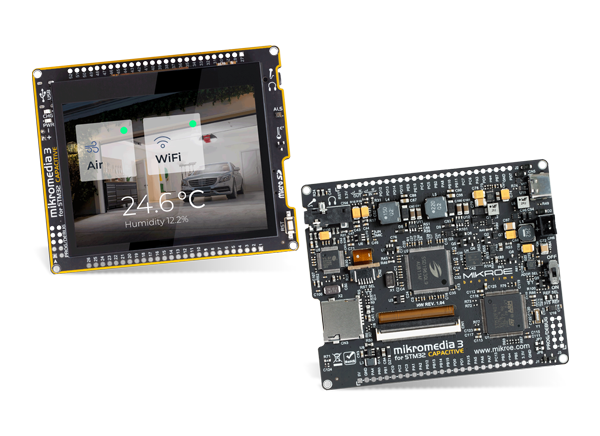

Mikroe MIKROE-3617 Mikromedia 3 for STM32 Capacitive
Mikroe MIKROE-3617 Mikromedia 3 for STM32 Capacitive is a development board featuring a 3.5" TFT display designed to develop multimedia and GUI-centric applications. This Mikroe development board features STM32F407VGT6 MCU, providing sufficient processing power, ensuring fluid graphical performance, and glitch-free audio reproduction. The MIKROE-3617's touchscreen is driven by a powerful graphics controller that displays a 24-bit color palette with DSP-powered embedded sound CODEC IC. This development board can be implemented directly into any project. The MIKROE-3617 features a USB, digital motion sensor, battery-charging functionality, and an SD-Card reader.
Features
- 3.5" TFT display with capacitive touchscreen
- STM32F407VGT6 MCU
- VS1053B for resource-demanding and complex audio processing
- SSD1963 graphics coprocessor
- Ambient Light Sensor (ALS)
- Digital motion sensor
- Battery charging functionality
- SD-Card reader
Specifications
- Two 1 x 26 pin headers
- SST26VF064B 64M bits flash memory
- Display resolution of 320 × 240 pixels
- 3.5V to 4.2V battery power supply input voltage range
- 4.4V to 5.5V USB power supply input voltage range
