Micro Commercial Components (MCC) SMLJxQ Auto-Grade TVS Diodes

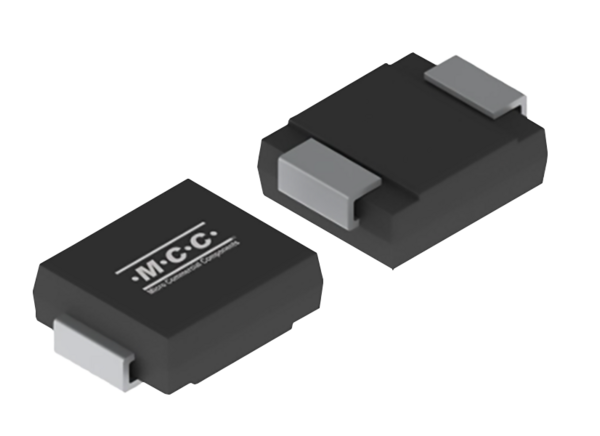

Micro Commercial Components (MCC) SMLJxQ Auto-Grade TVS Diodes are designed to offer high performance and reliability in a compact SMC package. These diodes offer substantial 3000W peak pulse power in a 5V to 85V voltage range. The SMLJxQ TVS diodes operate at junction temperature up to 175°C. These diodes feature excellent clamping capability and 15°C/W typical thermal resistance junction to lead. The SMLJxQ TVS diodes are available in unidirectional and bidirectional configurations. These diodes are AEC-Q101 qualified, lead-free, and halogen-free. The SMLJxQ TVS diodes are used in applications such as automotive headlights, in-car entertainment, navigation units, Engine Control Units (ECUs), Transmission Control Units (TCUs), and collision avoidance systems.
Features
- Supports up to 175°C temperatures, ideal for heat-intensive environments
- Offer a substantial 3000W peak pulse power rating for effective transient voltage suppression
- Available in unidirectional and bidirectional configurations
- 5V to 85V voltage range
- Excellent clamping capability
- AEC-Q101 qualified
- Moisture Sensitivity Level 1 (MSL 1)
- Halogen-free
- Lead-free
- Epoxy meets UL 94V-0 flammability rating
- ESD protection of data lines in accordance with IEC 61000-4-2 30kV (air) and 30kV (contact)
Applications
- Advanced Driver Assistance Systems (ADAS):
- Collision avoidance systems
- Lane departure warning systems
- Lighting systems:
- Automotive headlights
- Interior lighting
- Infotainment solutions:
- In-car entertainment systems
- Navigation units
- Control units:
- Engine Control Units (ECUs)
- Transmission Control Units (TCUs)
