KOA Speer SG73P Anti-Surge Thick Film Chip Resistors
KOA Speer SG73P Anti-Surge Thick Film Chip Resistors are high-power resistors in an designed for use in automotive electronic control units (ECUs). KOA Speer SG73P Anti-Surge Thick Film Chip Resistors feature a 1Ω to 10MΩ resistance range and 0.125W to 1W power rating. These resistors are AEC-Q200 qualified and offer down to ±0.5% tolerance.
Features
- High power pulse power resistors in 0402 to 1210 package
- 1Ω to 10MΩ resistance range
- 0.125W to 1W power rating
- 75V to 400V voltage rating range
- -55°C to +155°C operating temperature range
- AEC-Q200 qualified
- Down to ±0.5% tolerance
Applications
- Automotive
- Advanced driver-assistance systems
- Industrial devices
- Power supplies

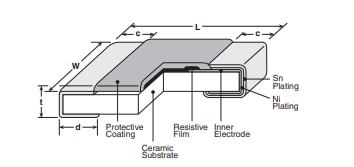

Dimensions
Published: 2021-06-07
| Updated: 2022-03-11
