JAE Electronics ES10 Single Wire LED Light Connector

JAE Electronics ES10 Single Wire LED Light Connector is a compact, low-profile insertion-type connector which compatible with LED lighting equipment. The user only has to insert the stripped wire into the connector for connection. A guiding mechanism at the single wire insertion area provides improved insertion workability. An original spring contacting structure provides improved contact reliability. JAE ES10 light connectors can be used for a wide range of compact devices, including LCD TV backlights, tablet PCs, and more.

Features

  • Compact and low-profile structure without an insulator enhances design flexibility
  • Improved insertion workability with a guiding mechanism at the single wire insertion area
  • The stripped wire is inserted into the connector for connection
  • Improved contact reliability with an original spring contacting structure

Specifications

  • No. of contacts - 1 pin
  • 30mΩ max. contact resistance
  • AC/DC 2A rated current
  • Durability - 5 times
  • -40°C to +105°C operating temperature
  • Applicable wire
  • Single wire 26 to 24 AWG equivalent (Ø0.4mm to 0.51mm)
  • Covered diameter Ø2.0mm max

Applications

  • LED Lighting
  • LCD TVs
  • Backlights
  • Tablet PCs

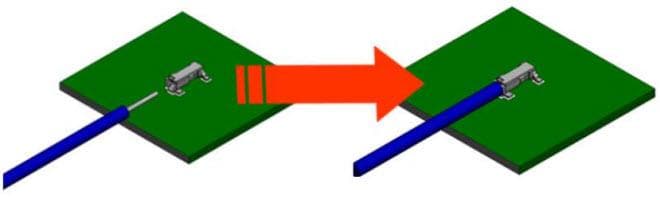

When Cable Inserted

JAE Electronics ES10 Single Wire LED Light Connector
