Infineon Technologies EVAL-PSIR2085 Power Supply Board

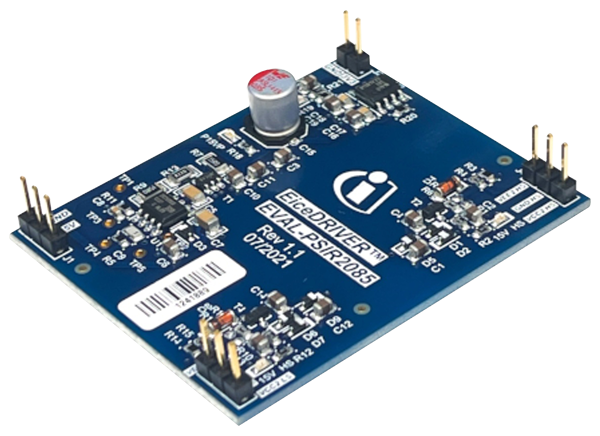

Infineon Technologies EVAL-PSIR2085 Power Supply Board is an easy-to-use, plug and play board designed for EiceDRIVER™ isolated gate driver evaluation boards. The EVAL-PSIR2085 offers two galvanically isolated power supplies. The Infineon EVAL-PSIR2085 Power Supply Board is ideal for fast EV charging, Uninterruptible Power Supplies (UPS), and server power supply applications.
Features
- Two galvanically isolated power supplies
- Power supply one for VCC1 (3.3 V) and GND for the primary side of the gate drivers
- Power supply two with VCC2_HS, GND_HS, and VEE2_HS for the secondary side of the high-side gate driver
- Power supply three with VCC2_LS, GND_LS, and VEE2_LS for the secondary side of the low-side gate driver
Applications
- Fast EV charging
- Motor control and drives
- Server power supply
- Solutions for solar energy systems
- Uninterruptible Power Supply (UPS)
Associated Products
Infineon Technologies EVAL1ED3121MX12 Evaluation Board
Features the 1ED3124MU12H or 1ED3121MC12H gate driver ICs.
Infineon Technologies EVAL1ED3124MX12 Evaluation Board
Features the 1ED3124MU12H or 1ED3124MC12H gate driver ICs.
EiceDRIVER™ Evaluation Boards

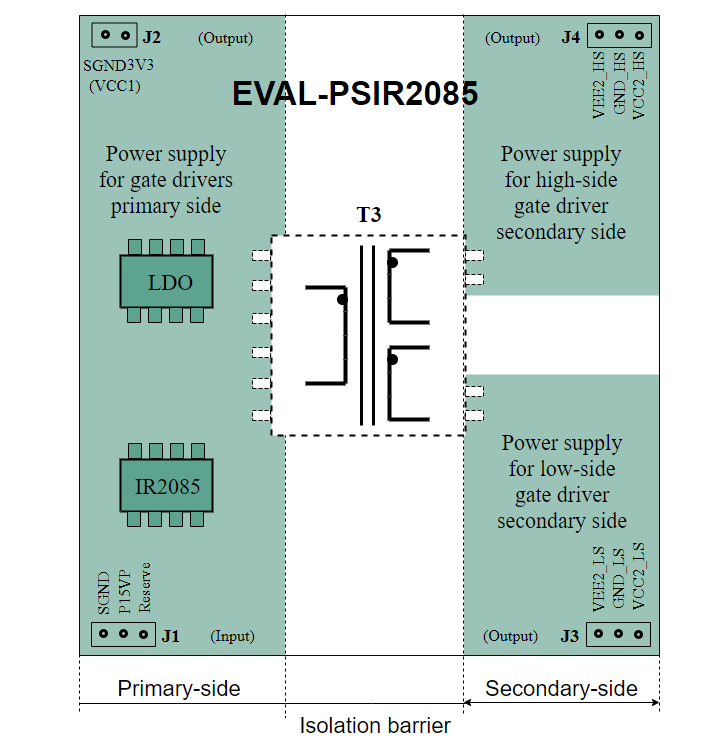

Block Diagram

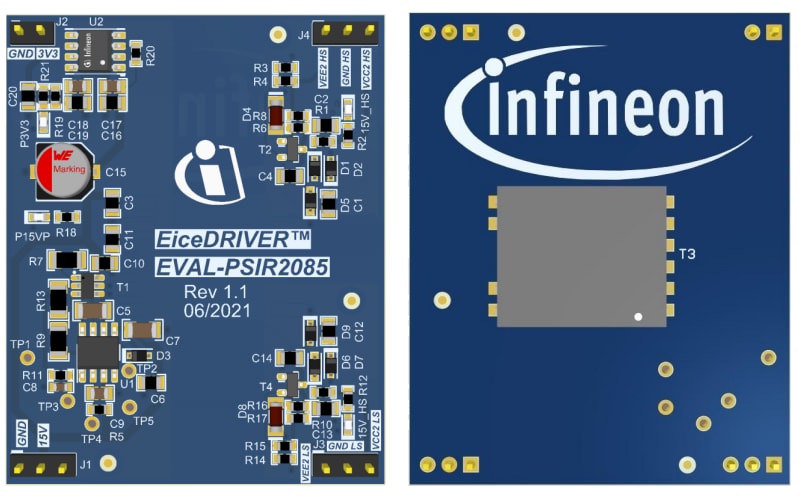

Overview
