Infineon Technologies DEMOBOARDTLD1314EL LED Driver Demo Board

Infineon Technologies DEMOBOARDTLD1314EL LED Driver Demo Board can be used for all of the basic LED driver families. All required device pins can be connected via the test sockets. One PCB can be used for all device types, therefore, test sockets have multiple names. The Infineon Technologies DEMOBOARDTLD1314EL LED Driver Demo Board is ideal for use in automotive lighting applications.

Features

  • Demo Boards are available for the following products
    • TLD1124EL
    • TLD1125EL
    • TLD1311EL
    • TLD1314EL
    • TLD1315EL
    • TLD1326EL
    • TLD2311EL
    • TLD2314EL
  • Demo board can be used for all other products of the basic LED driver family
  • All required device pins can be connected via test sockets
  • One PCB can be used for all device types, therefore, test sockets have multiple names

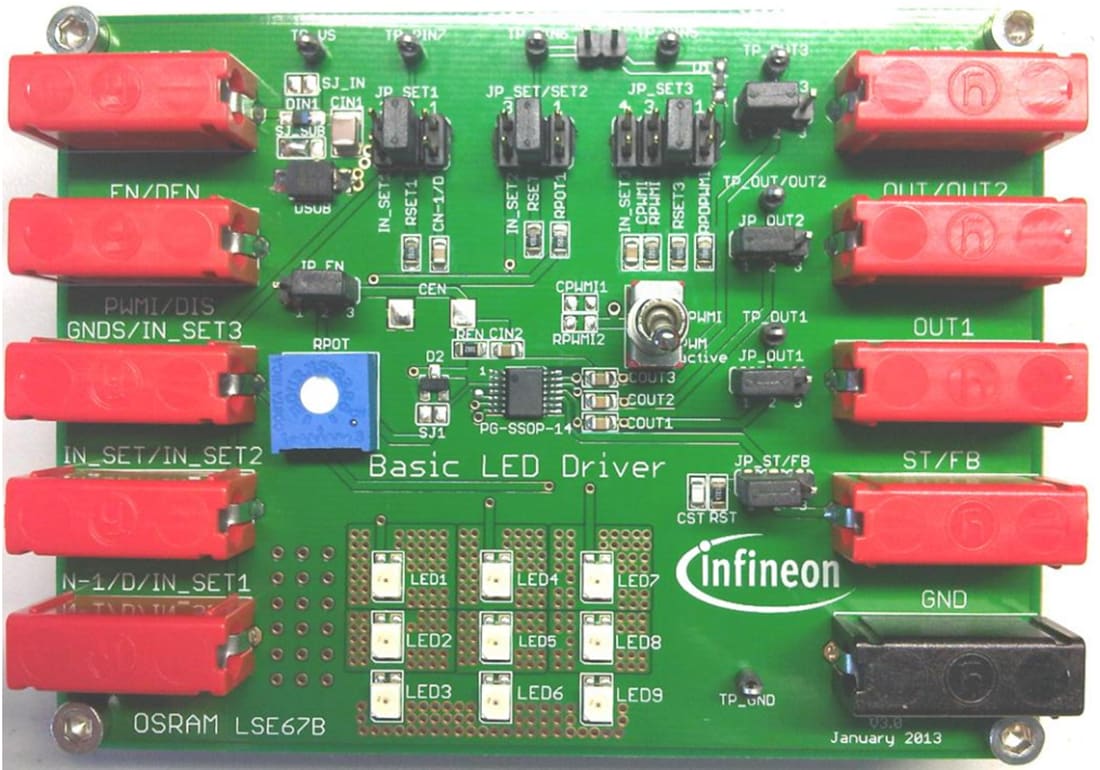

Board Layout

Mechanical Drawing - Infineon Technologies DEMOBOARDTLD1314EL LED Driver Demo Board

Jumper Settings Using Onboard Components

Chart - Infineon Technologies DEMOBOARDTLD1314EL LED Driver Demo Board
