Infineon Technologies 2ED020I12FA Evaluation Kit

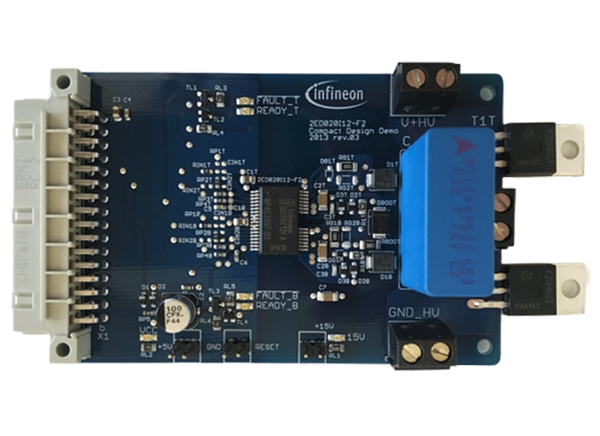

Infineon Technologies 2ED020I12FA Evaluation Kit is used to show the functionalities and key features of the Infineon IGBT gate driver 2ED020I12-F2. The board is available from Infineon in sampling quantities. The EVAL_2ED020I12-F2 contains an Infineon IGBT gate half-bridge driver 2ED020I12-F2 and twoInfineon IGBTs IKP20N60H3.
Features
- Galvanic isolation by the coreless transformer technology of the Infineon gate driver
- The gate 2ED020I12-F2 is suitable for basic isolation
- Isolation inside the half-bridge by defined creepage
- Short circuit protection
- Under-voltage lockout
- Active Miller clamp
- Bootstrap functionality for high side IGBT
- Connector for 5V digital supply, 15V supply, Reset, High voltage supply, external load
- Status LED for 5V supply, 15V supply, ready and fault separated for high- and low side driver
- DC link capacitor

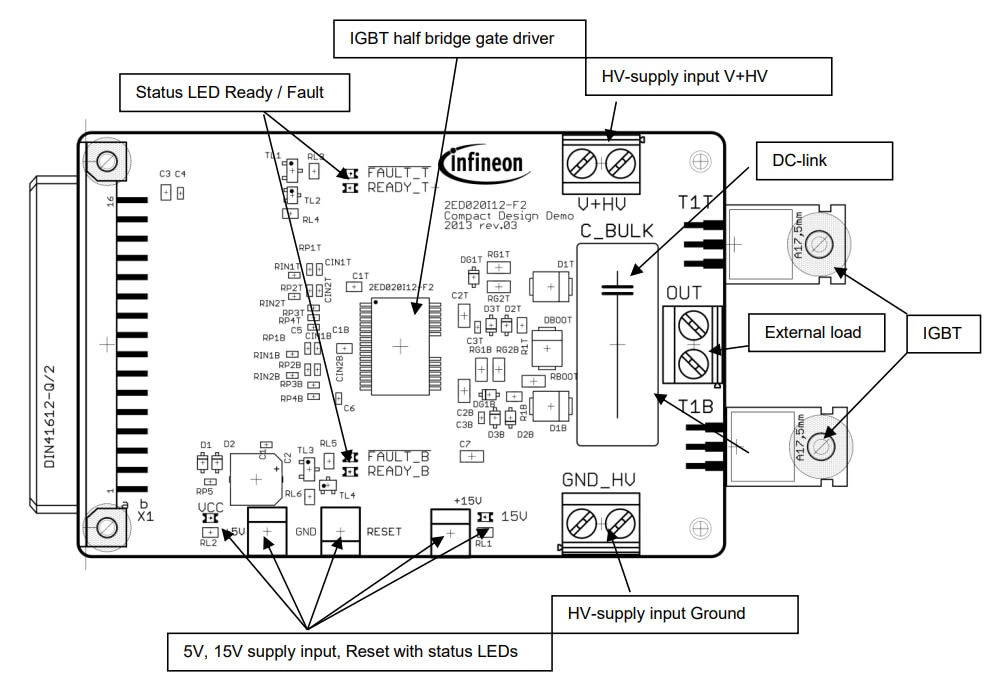

Design feature
