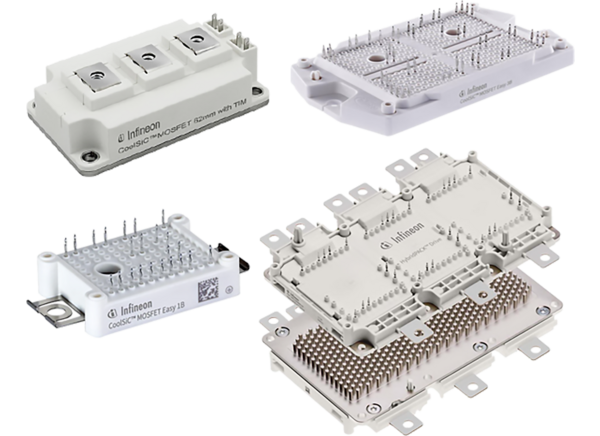

Infineon Technologies 1200V CoolSiC™ Modules

Infineon Technologies 1200V CoolSiC™ Modules are Silicon Carbide (SiC) MOSFET modules that offer good levels of efficiency and system flexibility. These modules come with Near Threshold Circuits (NTC) and PressFIT contact technology. The CoolSiC modules feature high current density, best in class switching and conduction losses, and low inductive design. These modules provide high-frequency operation, increased power density, and optimized development cycle time and cost.

Features

High current density
Best in class switching and conduction losses
Low inductive design
Low device capacitances
An intrinsic diode with reverse recovery charge
Integrated NTC temperature sensor
PressFIT contact technology

High efficiency for reduced cooling effort

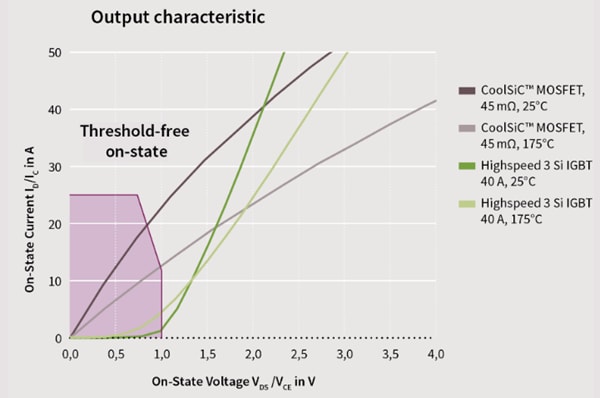

Threshold-free on-state characteristics
Temperature independent switching losses
High-frequency operation
Increased power density
Optimized development cycle time and cost
RoHS compliant

Specifications

AIMBG120R0:
- Automotive qualified
- 1200V voltage class
- Low gate charge and capacitances
- -55°C to +175°C operating temperature range
- 10mm x 9.25mm dimensions

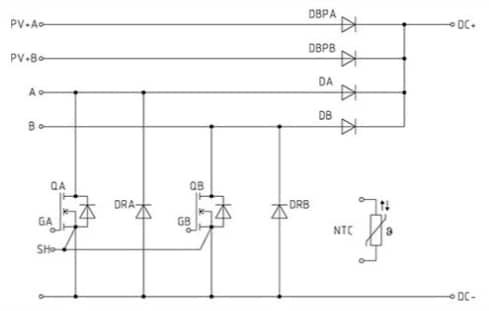

DF23MR12W1M1 and DF11MR12W1M1:
- Booster configuration
- Easy 1B configuration
- M1 technology
- 1200V voltage class
- 62.8mm x 33.8mm dimensions

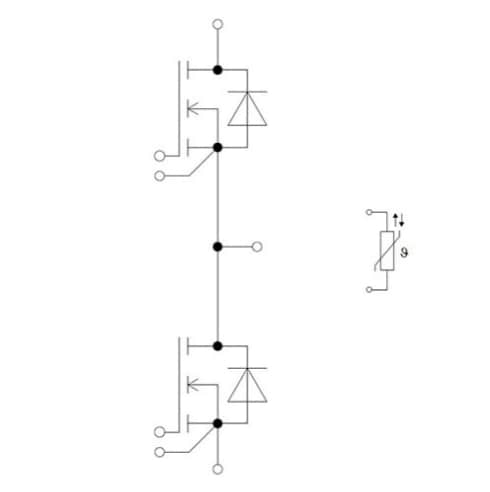

FF8MR12W2M1 and FF6MR12W2M1:
- Dual configuration
- Easy 2B housing
- M1 technology
- 1200V voltage class
- 62.8mm x 48mm dimensions
F423MR12W1M1P:
- FourPack configuration
- Easy 1B configuration
- M1 technology
- 1200V voltage class
- 62.8mm x 33.8mm dimensions

FF11MR12W1M1, FF45MR12W1M1, and FF23MR12W1M1:
- Dual configuration
- Easy 1B housing
- M1 technology
- 1200V voltage class
- 62.8mm x 33.8mm dimensions
F3L11MR12W2M1:
- 3-level configuration
- Easy 2B configuration
- M1 technology
- 1200V voltage class
- 42.5mm x 51mm dimensions

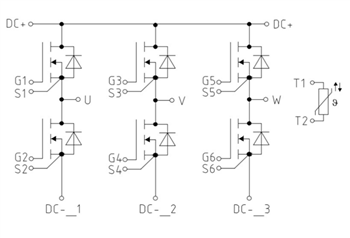

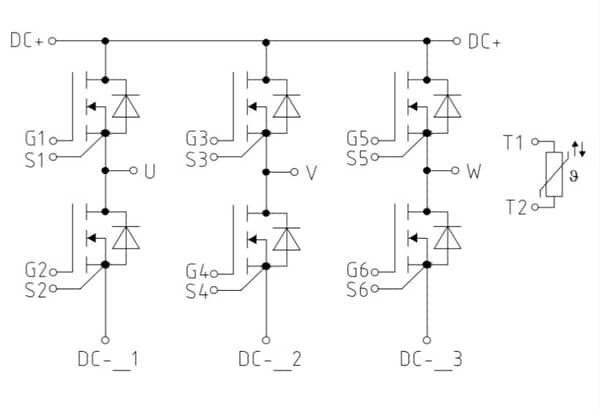

FS45MR12W1M1:
- SixPACK configuration
- Easy 1B housing
- M1 technology
- 1200V voltage class
- 62.8mm x 33.8mm dimensions
