Hirose Electric DF62W Water-Resistant Slim In-line Connectors
Hirose Electric DF62W Water-Resistant Slim In-line Connectors are designed for internal wiring and feature a smooth contour for connection inside small spaces. These slim connectors provide a secure, positive lock with a tactile click and visible lock confirmation. The two-point contact structure is highly reliable and resists vibration, and the connectors provide IP65/IP67 waterproof and dustproof performance when mated. Hirose Electric DF62W connectors offer a voltage rating of 250VAC/DC and pin counts of 2, 3, 4, 6, and 9. Typical applications include LED lighting, home appliances, automatic ticket gates, robotic arms, medical devices, and security systems.
Features
- Slim, sleek design and smooth contour combine to create connections in tight spaces
- Wide range of products to fit application needs
- IP65/IP67 waterproof and dustproof performance when mated
- Secure positive lock with a tactile click and visible lock confirmation
- Reliable 2-point contact structure
- Robust contact design protects contacts and lance areas
- Pin count variations in 2, 3, 4, 6, and 9 positions
- Glow wire compliance (compliant with IEC 60695-2-11)
- -40°C to +105°C operating temperature range
- UL, C-UL certified (250VAC/DC rated voltage)
Applications
- LED lighting
- Home appliances
- Medical devices
- Security systems
- Automatic ticket gates
- Robotic arms
- E-bikes
- Industrial
Videos

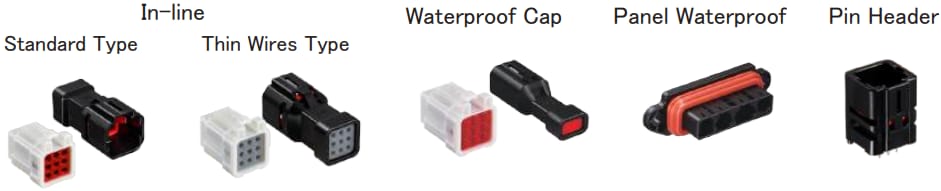

Variations

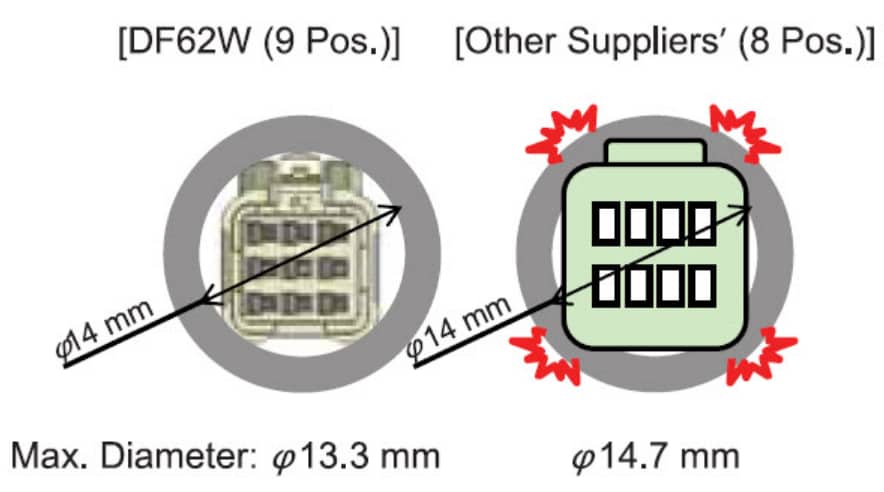

Size Comparison

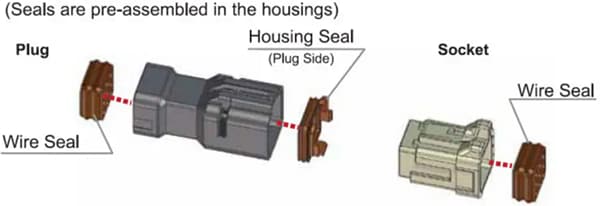

Water Resistant & Easy Locking
