Endress+Hauser Liquifloat FTS20 Point Level Switches
Endress+Hauser Liquifloat FTS20 Point Level Switches offer a simple and cost-effective solution for point level detection in appropriate fluids. The FTS20 series is designed for use as a pump protector or overfill prevention device in tanks and vessels and as a level alarm in open basins, such as sewage treatment plants. These float switches include two output options: a NAMUR switching signal for hazardous areas and a change-over contact for universal standard applications. Additional benefits include +3bar (+43.5psi) pressure, IP68 ingress protection, and simple installation using a tapped G1A hole. Endress+Hauser Liquifloat FTS20 Point Level Switches feature international explosion protection certificates.
Features
- Reliable and cost-effective design
- International explosion protection certificates
- Highest product and measurement safety due to different cable and sensor materials for various media
- Electrical connections to NAMUR for hazardous areas (to Zone 1) or change-over contact (AC/DC) for universal standard applications
- Small diameter for simple installation using tapped G1A hole
Applications
- Overfill prevention
- Pump protection
- Level alarm
Specifications
- NAMUR
- 8.2V ±2V power supply
- <1.2mA unswitched and >2.1mA switched operating current
- Inductive proximity switch with switching ball, closed when floating
- AC/DC
- 250VAC and 150VDC maximum switching voltage
- 3A (AC) and 1A (DC) maximum switching current
- Microswitch with switching ball
- +3bar (+43.5psi) pressure
- IP68 ingress protection
Dimensions

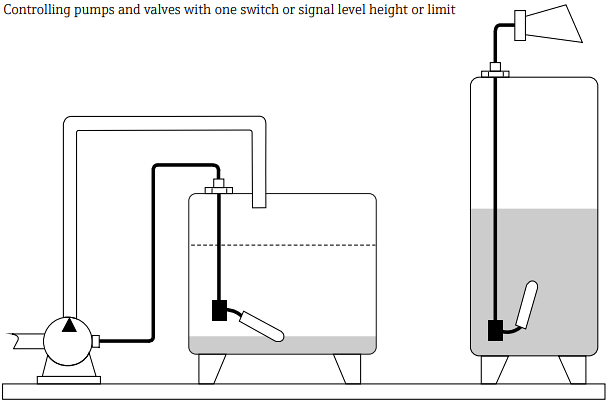

Application Example
