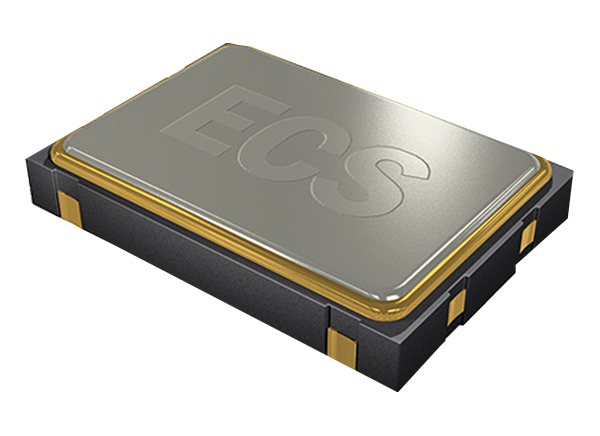

ECS ECS-3951M/3953M-AU SMD Clock Oscillators
ECS ECS-3951M/3953M-AU SMD Clock Oscillators are automotive grade miniature SMD oscillators. These oscillators operate at a standard temperature range from -55°C to 125°C. The ECS-3951M-AU SMD clock oscillators operate at 5V and ECS-3953M-AU operate at 3.3V respectively. These SMD oscillators are ideal for today's high temperature range applications.
Features
- -55°C to 125°C operating temperature range
- 5mm x 7mm footprint
- 1MHz to 200MHz operating frequency range
- Pb-free and RoHS compliant
- HCMOS output

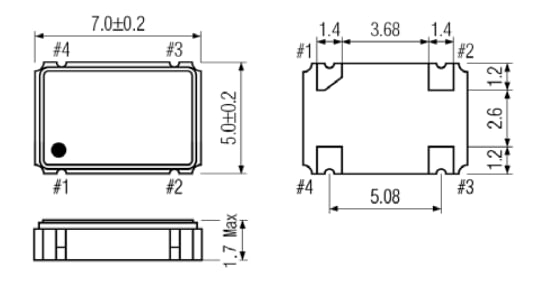

Dimensions (mm)
Related Product
ECS ECS-3951M/3953M Series SMD Clock Oscillators
Miniature, crystal-controlled, and low-current clock oscillators in a ceramic SMD package.
