ECS ECX-32 Compact SMD Ceramic Crystals
ECS ECX-32 Compact SMD Ceramic Crystals are subminiature SMD crystals in a 3.2mm x 2.5mm x 0.8mm package with an 8MHz to 54MHz frequency range. The ECX-32 components offer a frequency tolerance of ±50ppm at +25°C and frequency stability of ±50ppm in a -20°C to +70°C temperature range. An extended temperature range option is available( as low as -55°C up to +125°C). These crystals are ideal for SMD manufacturing environments with automated assemblies. Typical applications include LoRa WAN, wireless, and high density.
Features
- Low 0.8mm profile, 3.2mm x 2.5mm footprint
- ±50ppm frequency tolerance at +25°C
- ±50ppm frequency stability in a -20°C to +70°C temperature range
- 8MHz to 54MHz frequency range
- 5pF shunt capacitance
- 20pF typical load capacitance
- 100µW drive level
- 40Ω to 400Ω maximum ESR range
- ±5ppm first-year aging
- Extended temperature range option
- Fundamental oscillation mode
- Ideal for SMD manufacturing with automated assembly
- MSL 1, Au lead finish
- RoHS compliant
Applications
- LoRa WAN
- Wireless
- High density

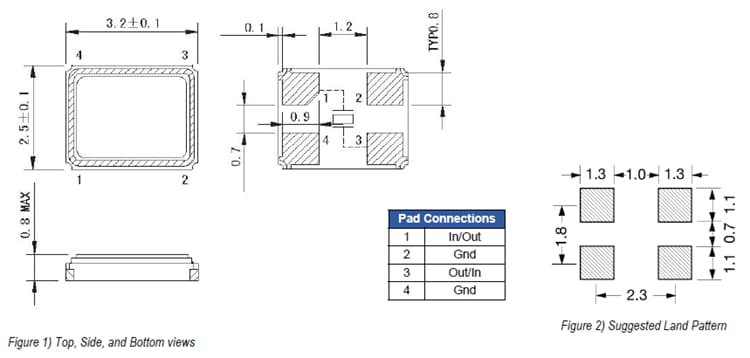

Dimensions (mm)
