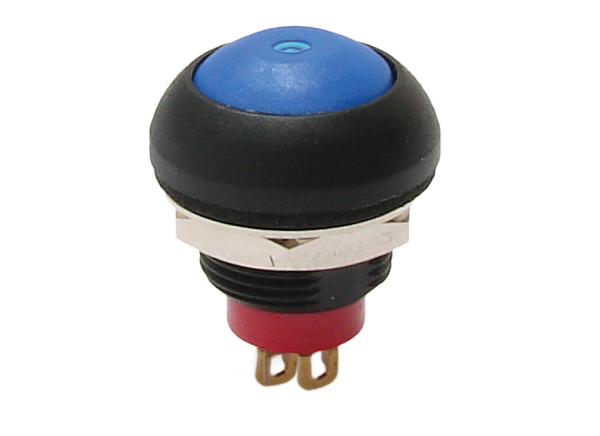

E-Switch RP8100 Pushbutton Switches

E-Switch RP8100 Pushbutton Switches are IP67-rated sealed switches with a life expectancy of 500,000 cycles. The E-Switch RP8100 Pushbutton Switches are threaded or snap-in panel mount devices with LED illumination options. The series offers ratings of 125mA at 125VAC or 100mA at 50VDC. Applications include audio/visual, electrical housewares, medical equipment, and more.

Features

  • Threaded or snap-in panel mount
  • 500,000 life expectancy
  • LED illumination options
  • Sealed to IP67 ratings
  • Molded back with wire leads (500mm long) optional

Applications

  • Audio/visual
  • Electrical housewares
  • Floor care appliances
  • White goods
  • Instrumentation
  • Medical equipment

Specifications

  • Electrical ratings
    • 125mA at 125VAC
    • 100mA at 50VDC
  • 50mΩ maximum (initial) contact resistance
  • 1000MΩ minimum insulation resistance at 500VDC
  • 1000VAC RMS dielectric strength
  • -30°C to +85°C operating temperature range
  • 1.5mm travel
  • Single-pole, single-throw off-(on) momentary contact arrangement
  • 350gF actuation force
  • 10ms maximum contact bounce
  • IP67 ingress protection
