Diodes Incorporated AP68065xQ/AP68105xQ Synchronous Buck Converters

Diodes Inc. AP68065xQ/AP68105xQ Synchronous Buck Converters are AEC-Q100 qualified converters suitable for automotive applications requiring specific change control. The AP680650Q/AP680651Q and AP681050Q/AP681051Q are adjustable-switching-frequency, constant-on-time control DC-DC buck converters. These devices can adjust the switching frequency from 300kHz to 600kHz. The AP680652Q and AP680652Q can program the MODE while operating at a fixed 300kHz frequency. These Diodes Inc. devices fully integrate 530mΩ high-side and 220mΩ low-side power MOSFETs to provide highly efficient step-down DC-DC conversion. The converters are available in a standard Green SO-8EP package.

The AP68065xQ/AP68105xQ converters enable a continuous load current of up to 1A with up to 92% efficiency. The devices are easy to use, minimizing external component count through the adoption of Constant On-Time (COT) control to achieve fast transient response, easy loop stabilization, and low output voltage ripple. With high integration and minimal external component requirements, the Diodes Inc. AP68065XQ/AP68105XQ simplifies board layout and reduces space requirements, ideal for distributed power architecture.

Features

  • Qualified for automotive applications
  • AEC-Q100 qualified with the following results
    • Device Temperature Grade 1 (-40°C to +125°C TA)
    • Device HBM ESD Classification Level H1C
    • Device CDM ESD Classification Level C3B
  • Functional safety-capable ISO26262 – documentation available to aid functional safety system design
  • 4.5V to 80V input voltage range
  • Adjustable 1.2V to 50V output voltage range
  • 1.2V ±1% Vref
  • 0.6A and 1A continuous output current
  • Adjustable switching frequency options
  • Programmable MODE options
  • Overcurrent Protection (OCP) with hiccup
  • Thermal protection
  • SO-8EP package
  • Totally lead-free and fully RoHS-compliant
  • Halogen-/antimony-free, Green device
  • Suitable for automotive applications requiring specific change control - AEC-Q100 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities

Applications

  • General-purpose point-of-load DC/DC power conversion
  • Automotive infotainment
  • Battery power applications
  • In-dash instrumentation
  • Navigation systems

Specifications

  • 4.48V maximum VCC undervoltage lockout threshold
  • 220mV typical UVLO hysteresis
  • 7.3V typical VCC regulator output voltage
  • 30mA typical VCC internal LDO current limit
  • 3.0µA typical shutdown supply current
  • 250μA maximum quiescent supply current
  • 530mΩ typical high-side switch on-resistance
  • 220mΩ typical low-side switch on-resistance
  • Typical HS MOSFET positive current limit from drain to source
    • 1.7A for AP68065xQ variants
    • 2.5A for AP68105xQ variants
  • Typical LS MOSFET current limit
    • 1.3A from drain to source
    • 3.0A for AP680652Q/AP681052Q from drain to source
  • 1.182V to 1.218V feedback voltage range
  • 4ms typical soft-start period
  • 100kHz to 600kHz frequency range using RT mode
  • 270kHz to 330kHz switching frequency range
  • 420ns typical on-time
  • 200ns (typical) minimum off-time
  • 1.23V typical EN rising threshold
  • 10mV typical EN hysteresis
  • Typical enable pin pull-up current
    • 0.35µA at 1V
    • 17.8µA at 1.5V
  • 0.5V maximum PFM mode logic threshold
  • 1.5V to 3.4V ultrasonic mode logic threshold range
  • 4.65V minimum PWM mode logic threshold
  • Typical feedback overvoltage with respect to the reference voltage
    • 110% VFB/VREF rising
    • 105% VFB/VREF falling
  • +173°C typical thermal shutdown
  • +25°C typical thermal hysteresis
  • +150°C maximum junction temperature
  • +300°C maximum lead temperature
  • -40°C to +150°C operating junction temperature range
  • ±1000V maximum ESD susceptibility (HBM and CDM)
  • Thermal
    • 39°C/W junction-to-ambient
    • 13°C/W junction-to-case (top)
    • 13°C/W junction-to-board (bottom)
    • 4.5°C/W junction-to-top characterization parameter
    • 12.5°C/W junction-to-board characterization parameter
    • 3.5°C/W junction-to-case (bottom)

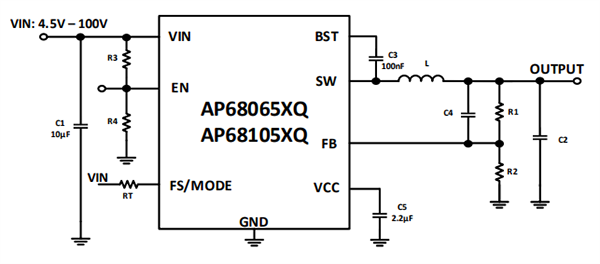

Typical Application Circuit

Application Circuit Diagram - Diodes Incorporated AP68065xQ/AP68105xQ Synchronous Buck Converters

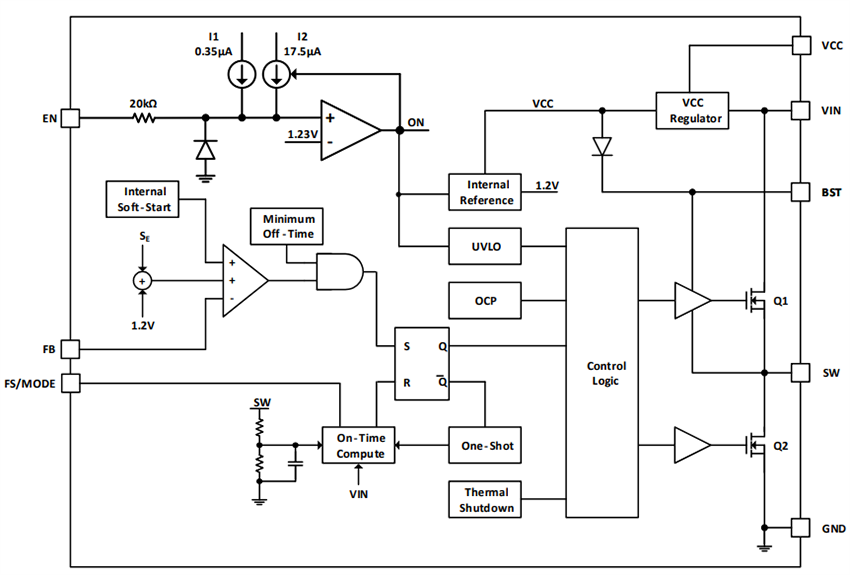

Functional Block Diagram

Block Diagram - Diodes Incorporated AP68065xQ/AP68105xQ Synchronous Buck Converters
