Digi XBee DigiMesh S2C 2.4 RF Modules

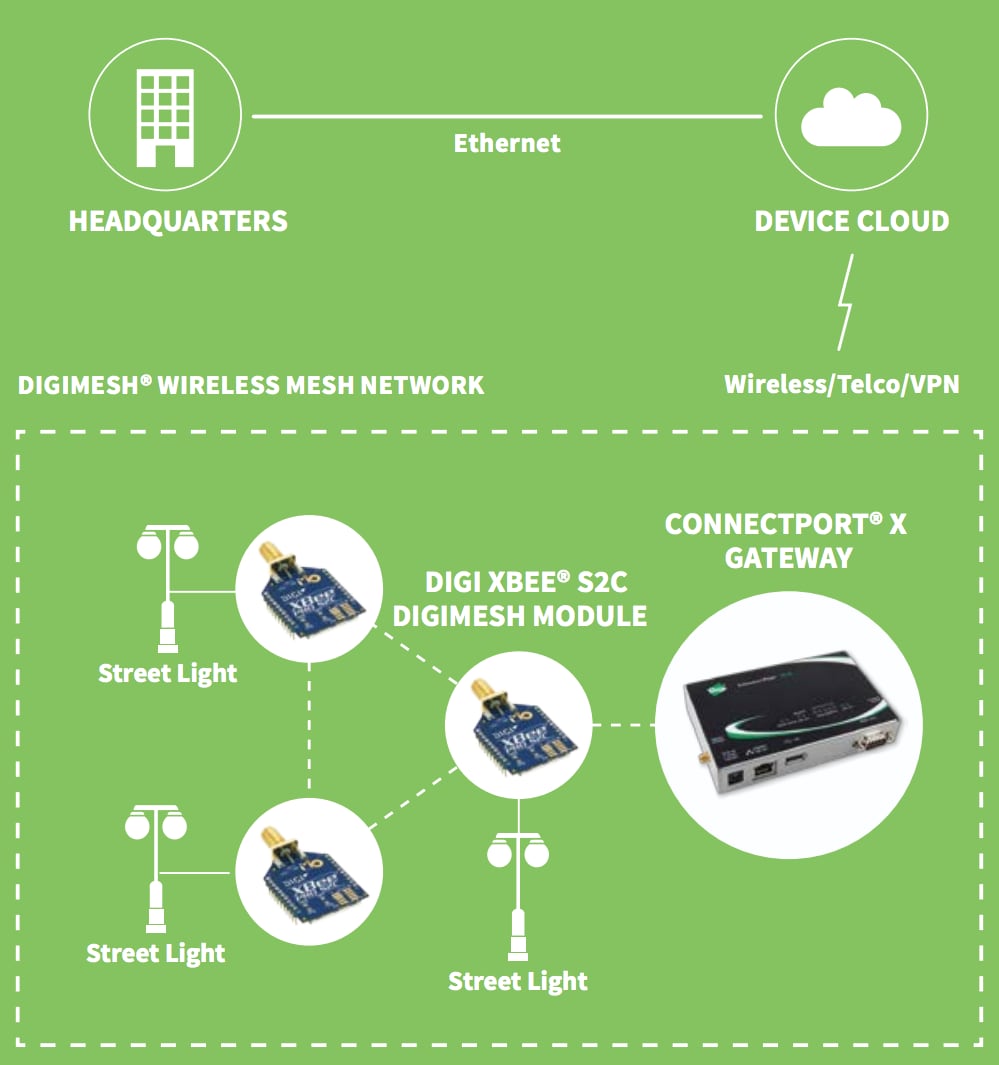

Digi XBee DigiMesh S2C 2.4 RF Modules provide wireless connectivity to electronic devices using a globally deployable 2.4GHz transceiver. These modules use the innovative DigiMesh networking protocol. This peer-to-peer mesh network offers added network stability through self-healing and dense network operation, extending the operational life of battery-dependent networks.

The Digi XBee S2C DigiMesh Module is based on the SiliconLabs EM357 SoC (System-on-Chip) and offers improved power consumption. The DigiMesh Modules also offer support for over-the-air firmware updates and provide an upgrade path to IEEE 802.15.4 or ZigBee® mesh protocols.

Features

No configuration is needed for out-of-the-box RF communications
Common XBee footprint for a variety of RF modules
Simple topology to deploy and grow

2.4GHz for worldwide deployment
Low-power XBee or extended-range XBee-PRO (pin/over-the-air compatible)
Multiple antenna options
DigiMesh peer-to-peer mesh networking protocol supports self-healing and discovery for network stability

Specifications

Transceiver Chipset: Silicon Labs EM357 SoC
Data Rate: RF 250Kbps, Serial up to 1Mbps
Serial Data Interface: UART, SPI
Configuration Method: API or AT commands, local or over-the-air (OTA)
Frequency Band: ISM 2.4GHz
Form Factor: Through-Hole, Surface Mount
Hardware: S2C
ADC Inputs: (4) 10-bit ADC inputs

Digital I/O: 15
Antenna Options
- Through-Hole: PCB Antenna, U.FL Connector, RPSMA Connector, or Integrated Wire
- Surface Mount: RF Pad, PCB Antenna, or U.FL Connector
Operating Temperature Range: -40°C to +85°C
Power-Down Current: <1µA at 25°C
