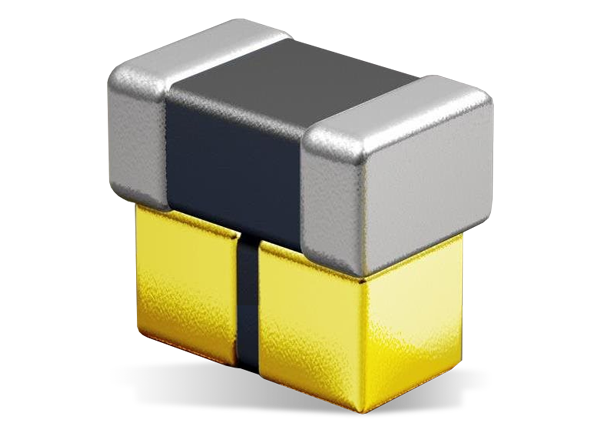

Dielectric Laboratories / Knowles Ultra Broadband DC Blocking OPTI-CAP® Capacitors
Dielectric Laboratories / Knowles Ultra Broadband DC Blocking OPTI-CAP® Capacitors offer resonance-free DC blocking to >40GHz. The series features ultra-broadband low loss, a very low series inductance, and X7R temperature and voltage stability. OPTI-CAP® improves low-frequency stability over temperature and is available in space-saving 0201, 0402, and 0602 footprints.
Features
- X7R temperature and voltage stability
- Resonance-free DC blocking to >40GHz
- SMT by solder or epoxy bonding
- Low-frequency stability over temperature
- Very low series inductance
- 0201, 0402, and 0602 footprints
Applications
- Test Equipment, Photonics, SONET, TOSA/ROSA, high-speed data
- Broadband microwave/millimeter wave
- Transimpedance amplifiers
Published: 2018-04-02
| Updated: 2022-08-15
