Cree LED CV94D RGB LEDs

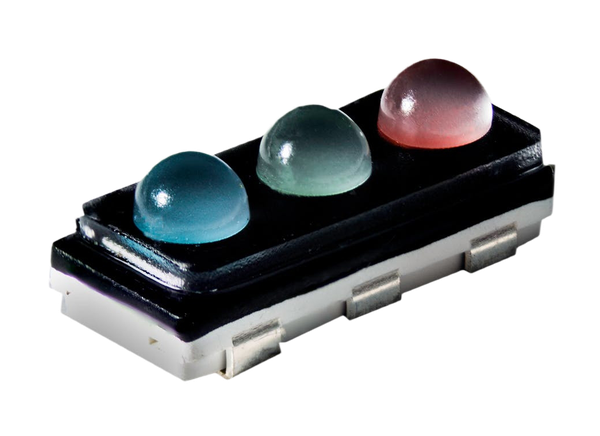

Cree LED CV94D RGB LEDs are designed for the most demanding variable message displays. These LEDs feature an IPx6/IPx8 spray and water resistance rating in a 9.4mm x 4.2mm x 4mm PLCC6 package. The CV94D RGB LEDs are lead-free and have a 5a moisture sensitivity level. These LEDs have exacting standards of power, longevity, matched sub-pixel brightness, and far-field optical distribution, that help outperform similar SMD RGB components. The CV94D RGB LEDs can be used in transportation and roadway signs, channel letter, and amusement.

Features

  • 9.4mm x 4.2mm x 4mm size
  • Water-resistant (IPx8)
  • Lead-Free
  • 5a moisture sensitivity level
  • RoHS compliant

Specifications

  • -40°C to 85°C operating temperature range
  • Dominant wavelength (at IF=20mA):
    • 619nm to 624nm range for red color
    • 520nm to 540nm range for green color
    • 460nm to 480nm range for blue color
  • Luminous intensity (at IF=20mA):
    • 3550mcd to 6000mcd range for red color
    • 7100mcd to 12000mcd range for green color
    • 1400mcd to 2300mcd range for blue color
  • Forward current:
    • 50mA for red color
    • 35mA for green color
    • 35mA for blue color
  • Reverse voltage:
    • 5V for red color
    • 5V for green color
    • 5V for blue color
  • Forward voltage (at IF=20mA):
    • 2.1V for red color
    • 2.8V for green color
    • 2.9V for blue color
  • Reverse maximum current (at VR=5V):
    • 10μA for red color
    • 10μA for green color
    • 10μA for blue color

Applications

  • Transportation and roadway signs
  • Amusement
  • Channel letter

Mechanical Diagram

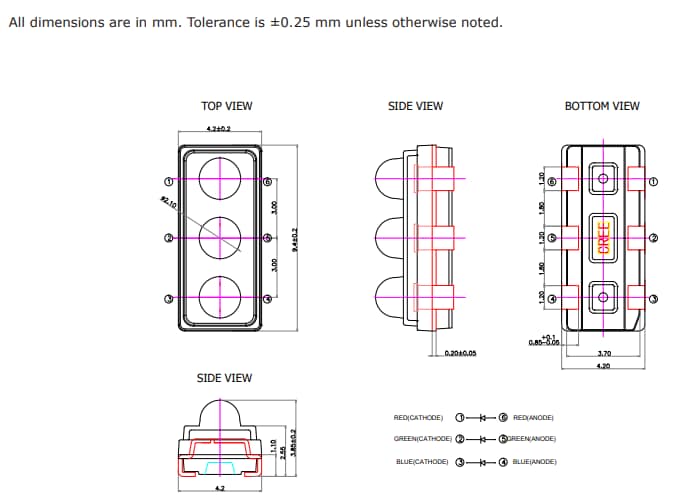

Mechanical Drawing - Cree LED CV94D RGB LEDs
