Cincon PDF700S 700W AC-DC Power Supplies
Cincon PDF700S 700W AC-DC Power Supplies deliver 700W of output power at single output voltages of 12VDC, 24VDC, 28VDC, 48VDC, and 56VDC. These full brick size modules feature a 90VAC to 264VAC universal input range, efficiency up to 91.5%, baseplate cooling, and safety approval Class I IEC/EN/UL 62368-1. Standard control functions include remote on/off and adjustable output voltage of +5%, -5% (PDF700S560: +1.8%, -5%). Cincon PDF700S 700W AC-DC Power Supplies are fully protected against input undervoltage lockout (UVLO), output overcurrent, output overvoltage and overtemperature, and continuous short-circuit conditions. The series offers a case operating temperature range of -40°C to +100°C. An optional heat sink is available to extend the full power range of the units.
Features
- 700W output power at single output voltages of 12VDC, 24VDC, 28VDC, 48VDC, and 56VDC
- 90VAC to 264VAC universal input range
- Efficiency up to 91.5%
- Full brick size
- Safety approval Class I IEC/EN/UL 62368-1
- 5000m operating altitude
- Remote On/Off
- Overtemperature, overvoltage, and continuous short-circuit protection
- Baseplate cooling
- -40°C to +100°C case operating temperature range
Videos

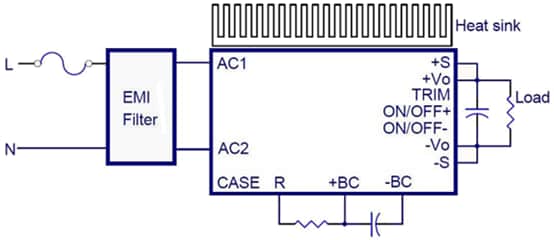

Simplified Application Circuit
