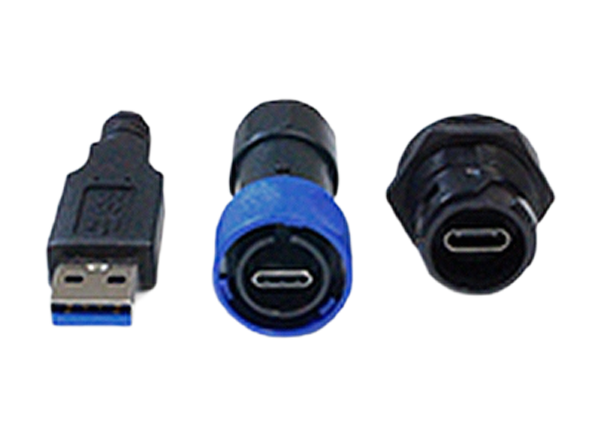

Bulgin 4000 C-Type USB Buccaneer Cables
Bulgin 4000 C-Type Series USB Buccaneer Cables are IP66, IP68, and IP69K rated and feature USB 3.2 support and data rates up to 20Gbps. Other features include plug-and-play capability, a shielded system, a secure, proven locking system, and tamper-proof construction. Color-coded O-rings and washers are included for easy identification purposes. Bulgin 4000 C-type cables meet EN60068-2-52 Test Kb Salt Mist (Cyclic) Marine Severity Level 1.
Features
- IP66, IP68, and IP69K rated
- USB 3.2 supported
- Plug-and-play capability
- Shielded system
- Secure, proven locking system
- EN60068-2-52 Test Kb Salt Mist (Cyclic) Marine Severity Level 1
- Data rates up to 20Gbps
- Tamperproof construction
- Color-coded O-rings and washers for easy identification purposes
Specifications
- 24-position connectors
- 5A current rating
- ≤30VAC rated
- 40mΩ maximum contact resistance
- -40°C to +80°C operating temperature range
- 1000 mating cycles
- 150mm to 5m cable length range
