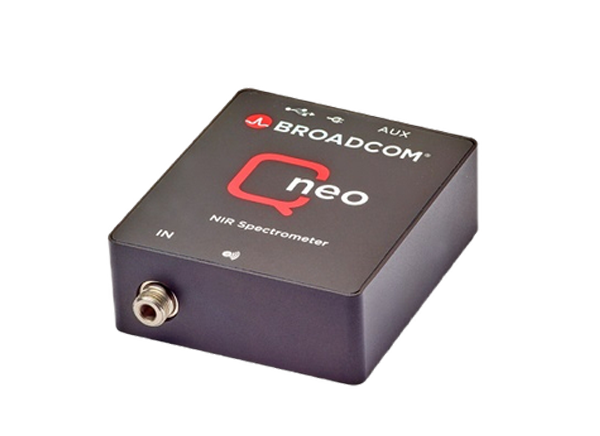

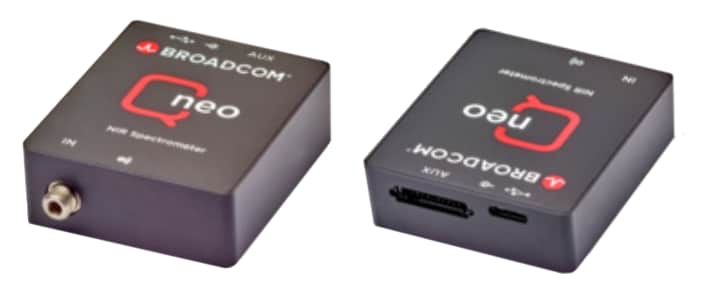

Broadcom Qneo AFBR-S20N1N256 Neat NIR Spectrometer
Broadcom/Avago Qneo AFBR-S20N1N256 Neat NIR Spectrometer features an uncooled InGaAs sensor array and a wide wavelength range of 950nm and 1700nm. The 256-pixel sensor included on the Qneo allows high optical performance.
The Broadcom/Avago Qneo AFBR-S20N1N256 Neat NIR Spectrometer offers a rugged setup of high resistance in industrial environments, on a footprint smaller than a credit card.
The Qneo spectrometer includes Waves user software developed for general-purpose spectroscopy applications. The Waves software has advanced algorithms for data acquisition and evaluation.
The AFBR-S20N1N256 is directly controlled from an embedded microcontroller or other operating systems using the device communication protocol, which is designed to be both powerful and easy to use.
Features
- High sensitivity
- Low-temperature dependency
- Stable long-term performance
- Ultra-compact design
- Powerful onboard electronics
Applications
- Agricultural analysis
- Food safety
- Chemical analysis
- Quality control
- Petro-chemical analysis
- Environmental analysis
- Biomedical applications
- Pharmaceutical analysis
- Process control and monitoring

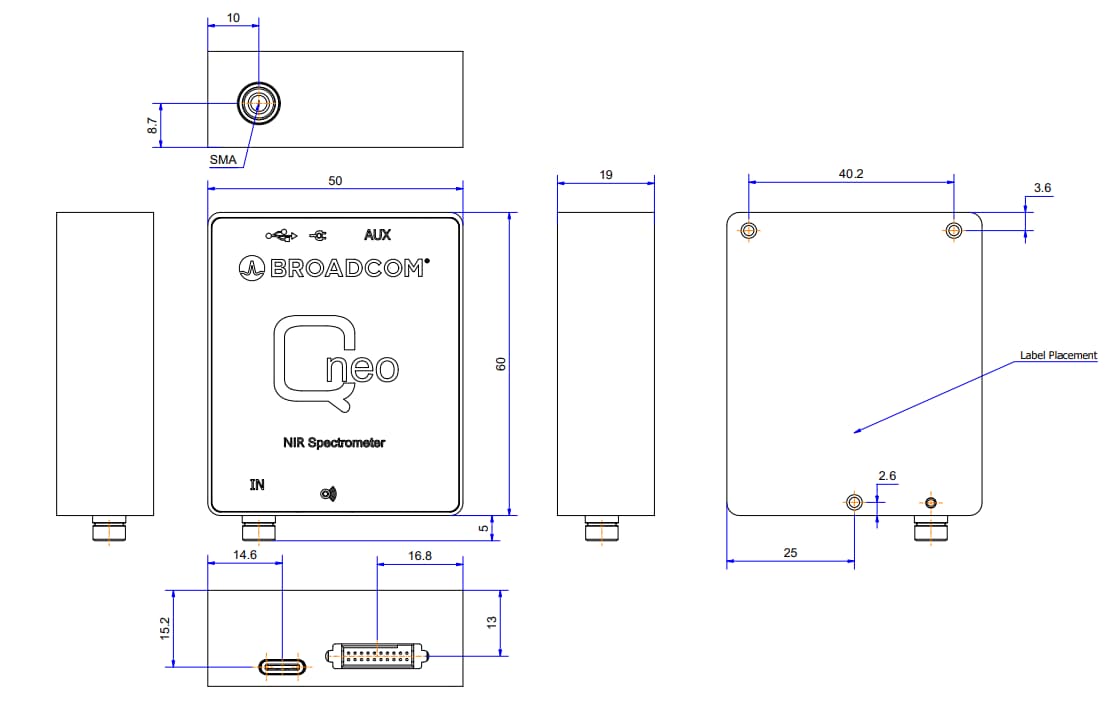

Qneo Package Outline mm
